Introduction

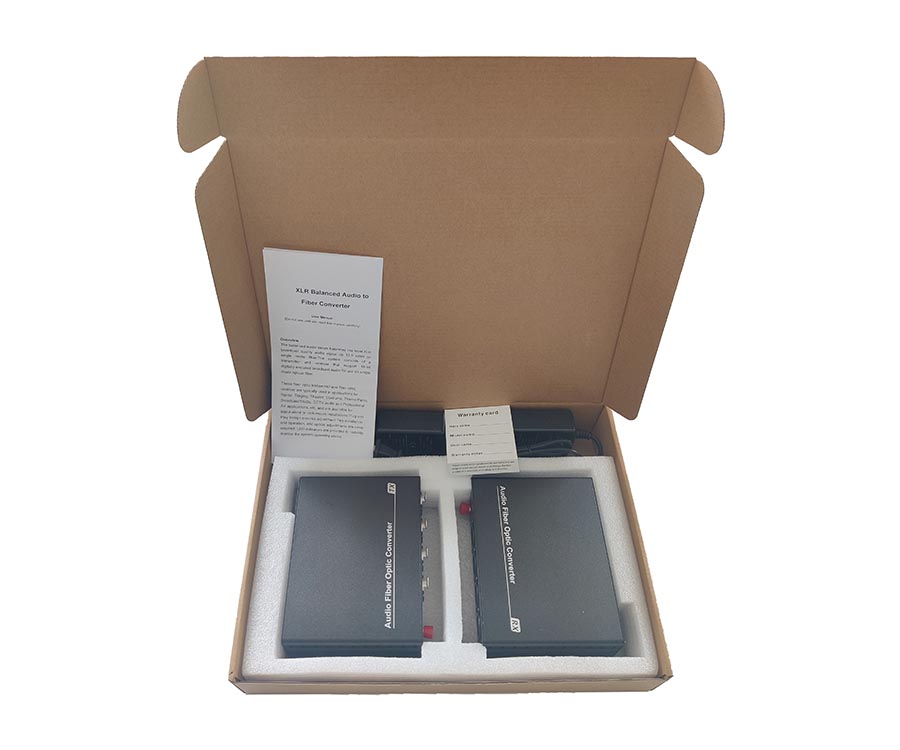

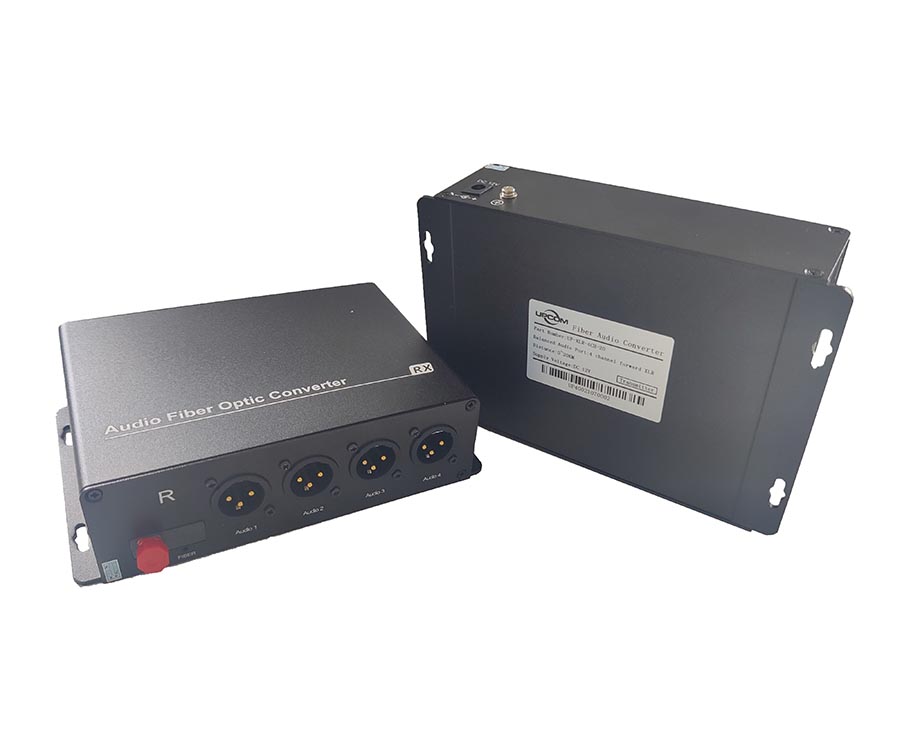

UPCOM UP-XLR-4CH-20 balanced audio over fiber converters transmit 4 channel balanced line-level XLR broadcast-grade audio signal up to 20km through a single mode fiber. The device consists of a transmitter and receiver that support 16-bit digitally encoded broadcast audio for use on a single mode optical fiber.

XLR balanced audio to fiber converters are commonly used in Rental, Staging, Theater, Stadiums, Theme Park, Broadcast/Studio, CCTV audio and Professional AV applications, and can be used in stand-alone or rack-mount installations. The plug and play design ensures adjustment-free installation and operation, and optical adjustments are never required. Provide LED indicators to monitor the running status of the system in real time.

 Support 4 channel forward XLR balanced audio Over fiber;

 Plug-and-play, easy to install;

 Support fiber connector FC/ST/SC optional;

 Single mode, single fiber can reach up to 20km;

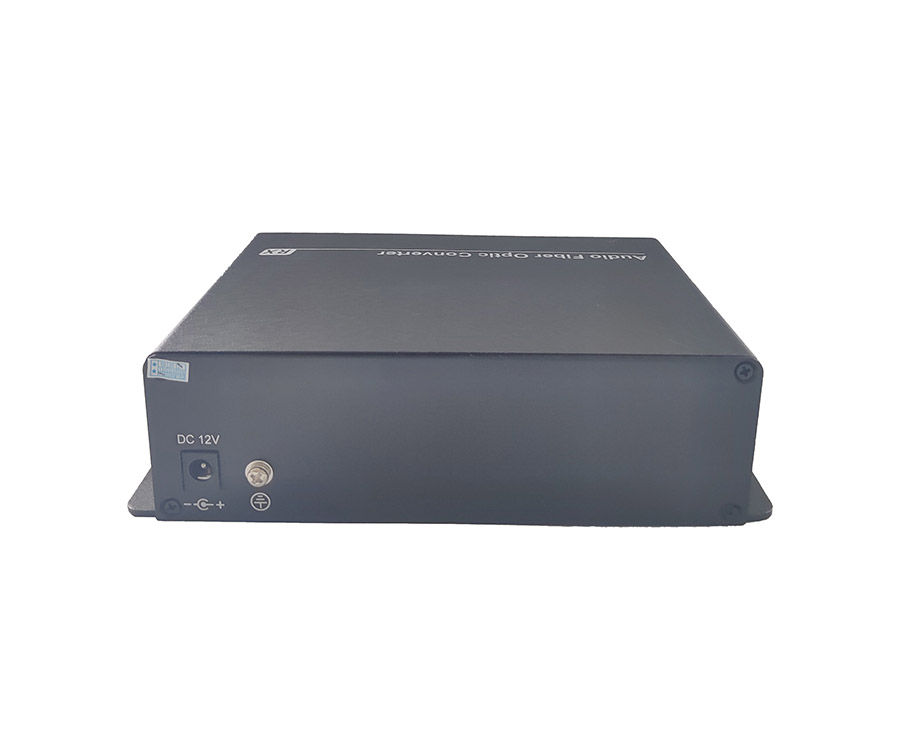

 Support External power DC12V;

 LED indicators for easy diagnosis and monitoring work status;

 Wide range of operational temperature(-20°C ~65°C);

 Support Stand-alone or rack-mount installation;

 Warranty: 3 years;

REQUEST A QUOTE

Datasheet

Date	Version	Description	Download
2021-07-02	1.0	4 Channel Forward XLR Balanced Audio Over Fiber Converters

User's Manual

Date	Version	Description	Download
2021-07-02	1.0	4 Channel Forward XLR Balanced Audio Over Fiber Converters
