Introduction

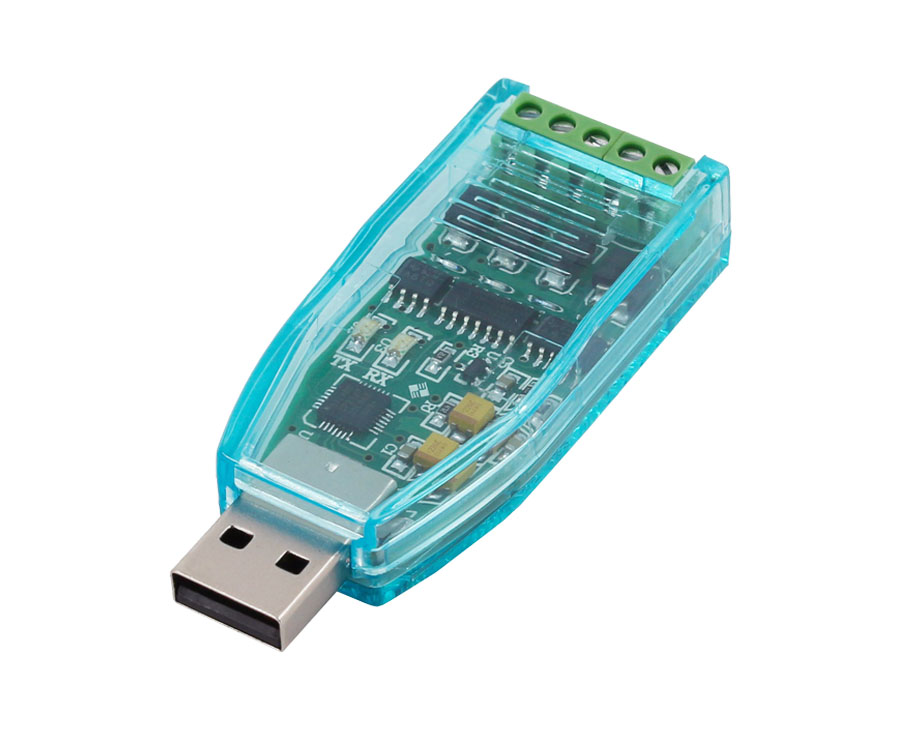

The UP-USB-2 is an USB to RS-485/RS-422 converter with power supply from USB port that no need external power supply, which can be used to convert any standard USB port into a two-wire RS485 port, or a four-wire RS422 port, adopt unique serial protection circuit, static & lightning & protection and surge suppression effectively avoid damage caused by lightning strikes, surges and other factors.
UP-USB-2 supports serial data rates up to 12Mbps, auto-sensing and self-adjusting, no DIP switch or jumpers are required, which widely used in intelligent power management, power system automation, water conservancy monitoring, industrial automation, distributed data acquisition and other occasions.
Features
Support USB to RS-485/RS-422 Converter;
Fully compliant with USB 2.0 specification;
Support multiple operating systems such as WIN98/2000/XP;
Plug and play (hot-pluggable);
Support remote wake up and power management;
Unique serial protector circuit, anti-static, anti-lightning strike, surge suppression function;
Built-in intelligent module, auto recognizes RS422/RS485 signal flow, zero delay;
USB port powered, no external power is required;
Warranty:3years
Support USB to RS-485/RS-422 Converter;
Fully compliant with USB 2.0 specification;
Support multiple operating systems such as WIN98/2000/XP;
Plug and play (hot-pluggable);
Support remote wake up and power management;
Unique serial protector circuit, anti-static, anti-lightning strike, surge suppression function;
Built-in intelligent module, auto recognizes RS422/RS485 signal flow, zero delay;
USB port powered, no external power is required;
Warranty:3years
