Introduction
UPCOM USB3.2 fiber optical converter is developed to transmit 4-channel Super Speed Plus ultra-high speed signal extension of 250 meters through one-core optical fiber.
USB3.2 fiber optical converter uses a special USB PHY to meet the requirements of USB3.2 protocol,and uses 10Gbps SFP to complete the photoelectric conversion and realize the stable transmission of USB3.2 Super Speed Plus ultra-high-speed signal.

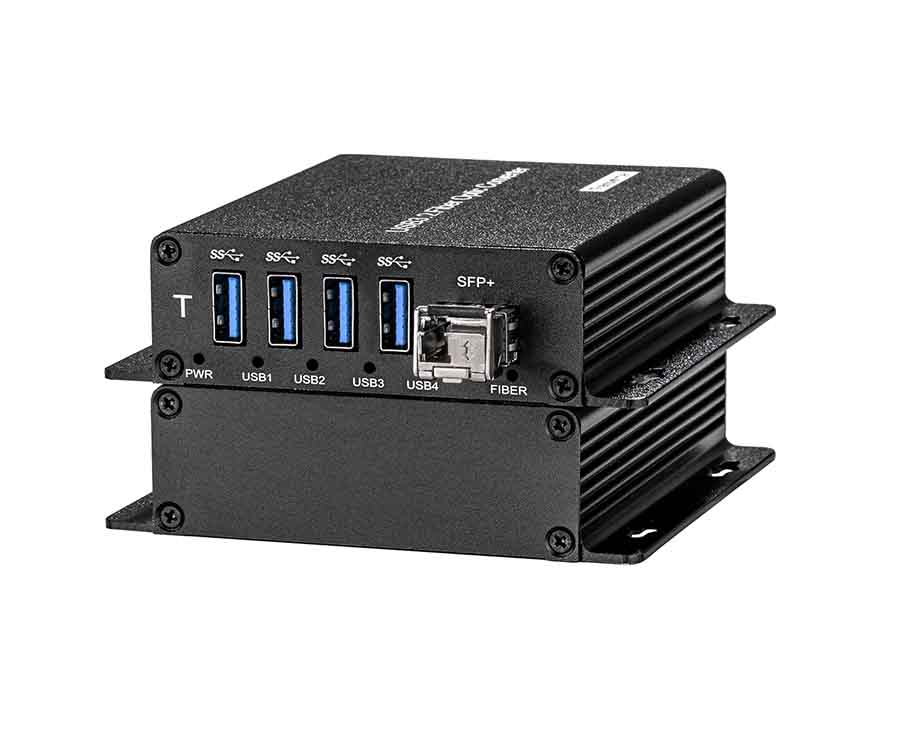

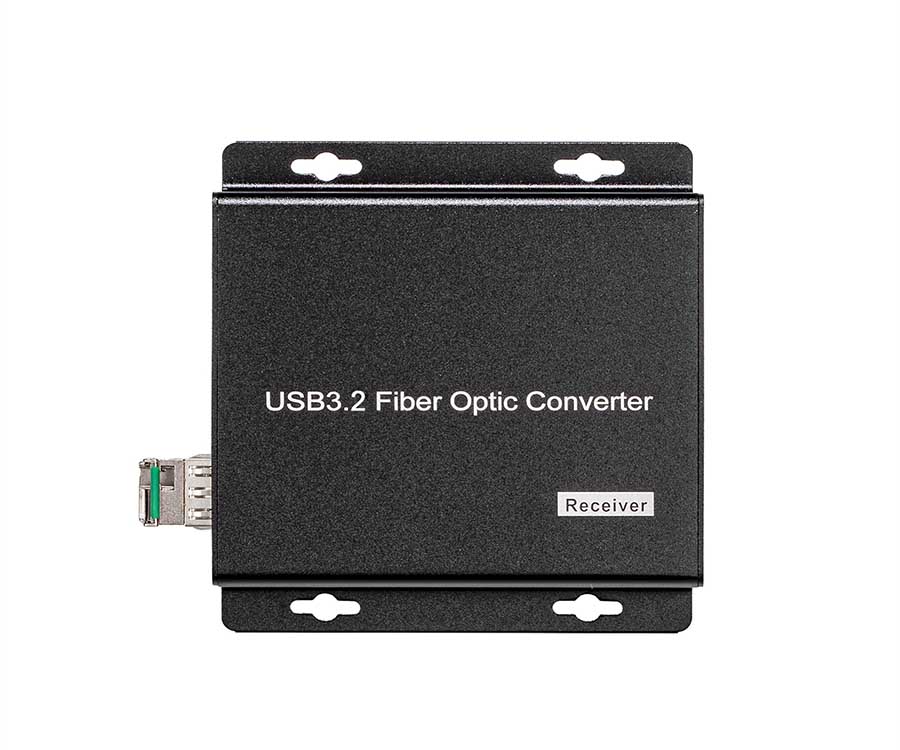

USB3.2 fiber optical converter consists of a transmitter and a receiver that provides 5V power through the host USB 3.2 type A connector,the transmitter is powered by an external power supply and supplies power to the USB3.2 device through the USB3.2 A type connector.
Note that the bandwidth of 10Gbps is not 10Gbps divided by 8 to get 1250MB/s,it uses the same 10-bit transmission mode as SATA,so its full speed is only 1000MB/s,10Gbps is the theoretical transmission value.If several devices share a USB channel,the master control chip will allocate and control the bandwidth available to each device.
USB-IF released the latest USB naming specification,the original USB 3.0 and USB 3.1 will no longer be used,all USB 3.0 standards will be called USB 3.2,consider compatibility issues,USB 3.0/USB 3.1/USB 3.2 are called USB 3.2 Gen 1 (5G bps)/USB 3.2 Gen 2 (10G bps)/USB 3.2 Gen 2x2 (20G bps).
Features
Complies with the general serial bus 3.2 specification;
Complies with USB power delivery 3.2 Gen 1 specification;
Supports Super Speed Plus (10G bps),Super Speed (5G bps) rate;
Meet the USB Type-C ® standard;
Internal USB PHY adopts advanced CMOS process to achieve low power consumption;
Support 4 channels independent configuration of USB3.2 signal input;
Support Single-fiber or dual-fiber (optional) ;
Support PWM LED status indicator;
Downward compatible with USB3.2 Gen 1 (3.0),not compatible with USB2.0 and USB1.1;
Plug and play,no driver;
Wide range of operational temperature (-20°C ~75°C)；
Warranty: 3 years;
Specification
Fiber Optical |
Wavelength | 1270-1330nm |
Rate | 10Gbps |
Tx power | ＞-3db |
Rx sensitivity | ＞-10db |
Fiber connector | LC |
USB |
Version | Universal Serial Bus 2.0 |
Transmission rate | 10Gbps（1000MB/s） |
USB total load current | ≤2A |
Power supply voltage of the transmitter | 5V |
Single USB port supply current | >900mA |
Physical interface | USB3.2 Type A connector |
Power |

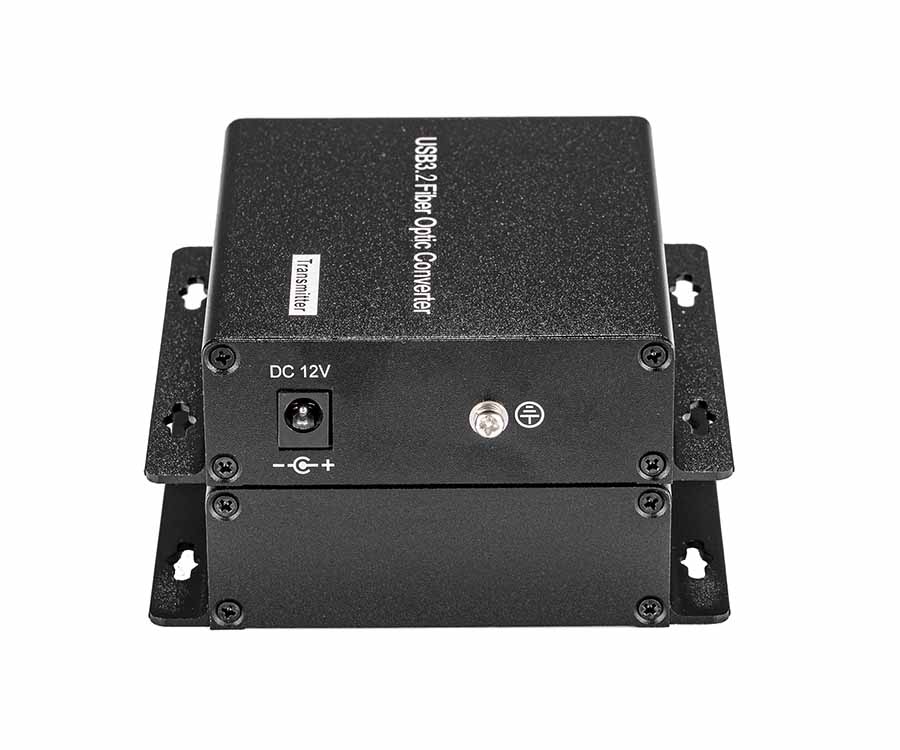

Transmitter input voltage | DC 12V |
Transmitter power consumption | 1.2W |
Receiver input voltage | DC 5V |
Receiver power consumption | 1.2W |
Other |
The shell metal | Aluminium alloy |
Product size | 104*104*28mm |
Net weight | 0.35KG |
Way to install | Wall-mounted type (desktop type) |
Color | Black |
Material of Packing | Kraft paper |
Package size | 275*220*55mm |
Gross weight | 0.7kg |
Working temperature | -20°C ~75°C |
Storage temperature | -40°C ~85°C |
Relative humidity | From 5 to 95% (non-condensing) |
Warranty | 3 Years |
