Introduction
UPCOM USB2.0 fiber optical converter is developed to transmit 4-channel USB2.0 signal extension of 20km through one-core optical fiber.
USB2.0 fiber optical converter uses a special USB PHY to meet the requirements of USB2.0 protocol,and uses 1.25Gbps SFP to complete the photoelectric conversion and realize the stable transmission of USB2.0 signal.

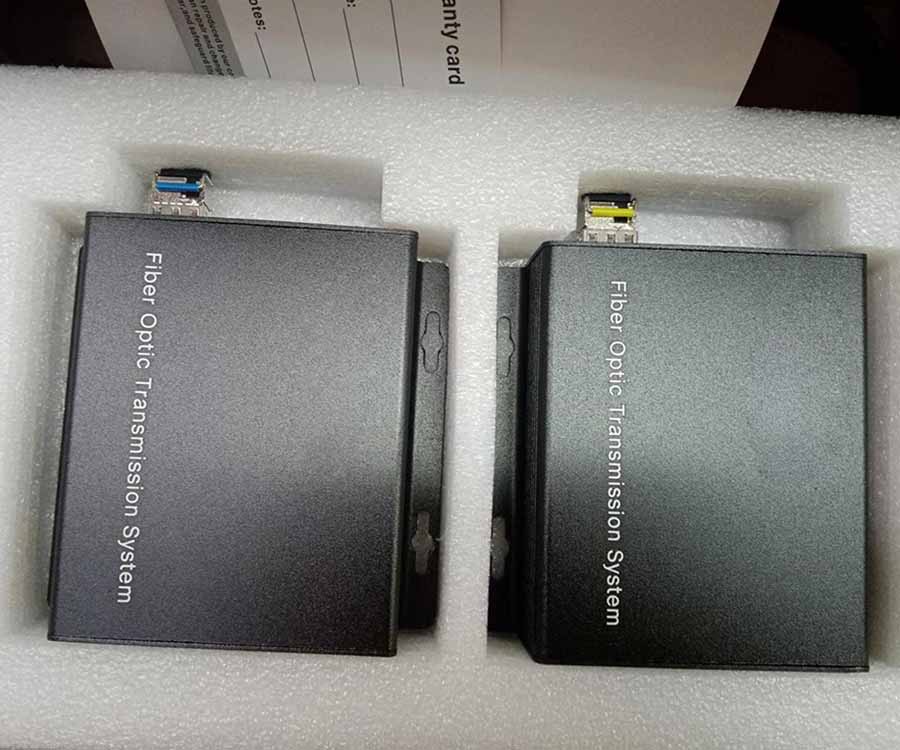

USB2.0 fiber optical converter consists of a transmitter and a receiver that provides 5V power through the host USB 2.0 type A connector,the transmitter is powered by an external power supply and supplies power to the USB2.0 device through the USB2.0 A type connector.
Features
Complies with the general serial bus 2.0 specification;
Complies with USB power delivery 2.0 specification;
100m distance rate>=60Mbps(6MB), 500m distance>=50Mbps(5MB), 20km>= 16Mbps(1.6MB);
Internal USB PHY adopts advanced CMOS process to achieve low power consumption;

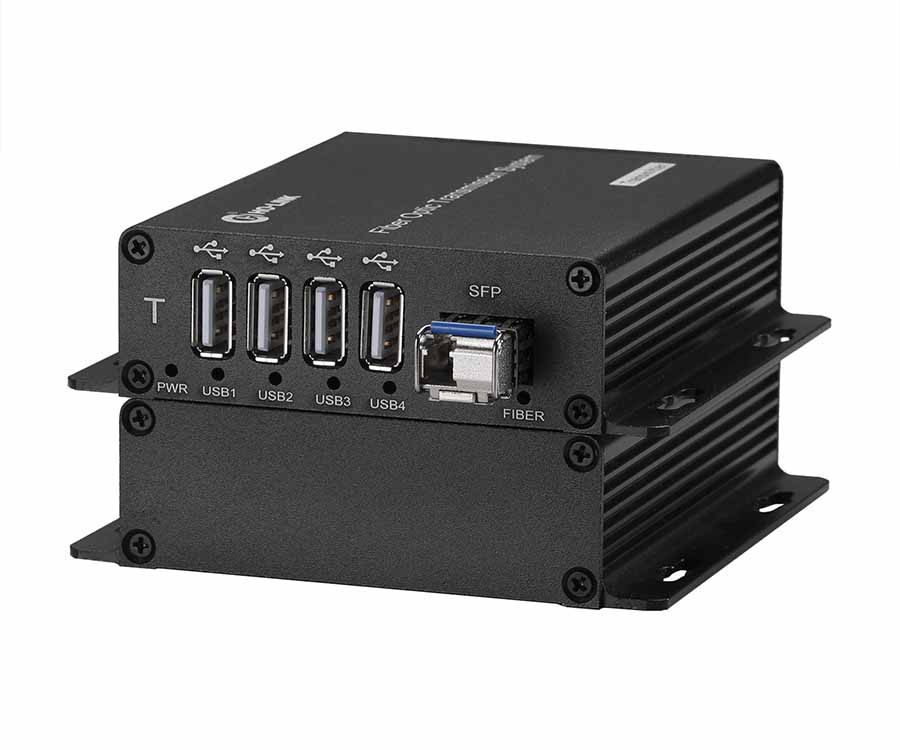

Support 4 channels independent configuration of USB2.0 signal input;
Support LED status indicator;
Plug and play,no driver;
Wide range of operational temperature (-20°C ~75°C);
Warranty: 3 years;
Specification
Fiber Optical |
Wavelength | 1310-1550nm |
Rate | 1.25Gbps |
Tx power | -3db~-6db |
Rx sensitivity | <-28db |
Fiber connector | LC |
USB |
Version | Universal Serial Bus 2.0 |
Transmission rate | 480Mbps |
USB total load current | ≤2A |
Power supply voltage of the transmitter | 5V |
Power supply voltage of the receiver | 12V |
Single USB port supply current | >900mA |
USB cable | <5 Meters |
Physical interface | USB 2.0 Type A connector |
Power |

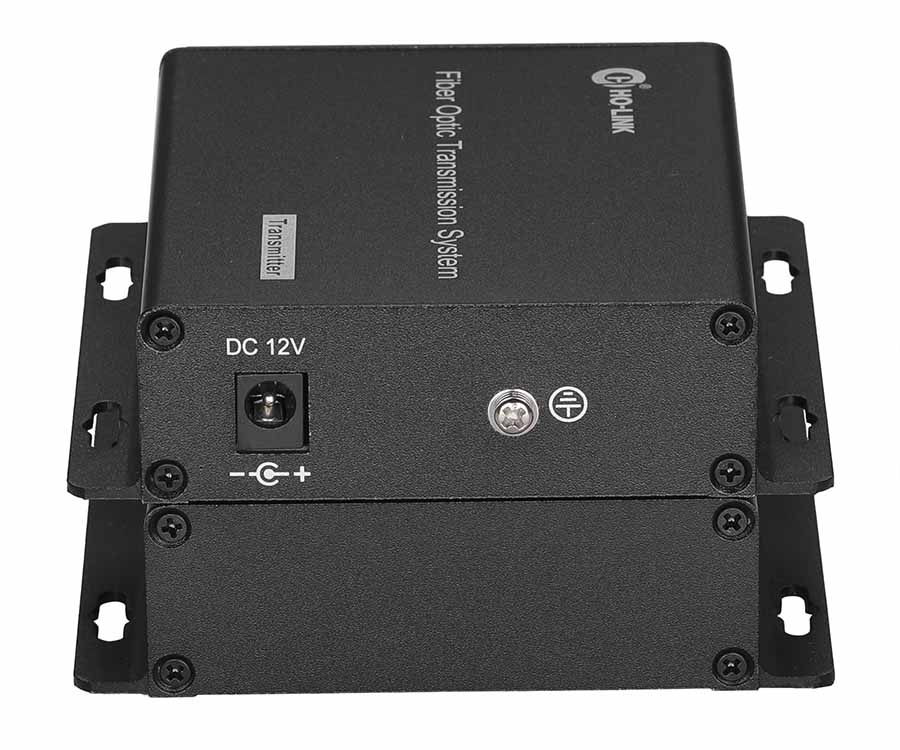

Transmitter input voltage | DC 12V |
Transmitter power consumption | ＜2.5W |
Receiver input voltage | DC 5V |
Receiver power consumption | ＜2.5W |
Other |
The shell metal | Aluminium alloy |
Product size | 104*104*28mm |
Net weight | 0.35KG |
Way to install | Wall-mounted type (desktop type) |
Color | Black |
Material of Packing | Kraft paper |
Package size | 275*220*55mm |
Gross weight | 0.7kg |
Working temperature | -20°C ~75°C |
Storage temperature | -40°C ~85°C |
Relative humidity | From 5 to 95% (non-condensing) |
Warranty | 3 Years |
