Introduction

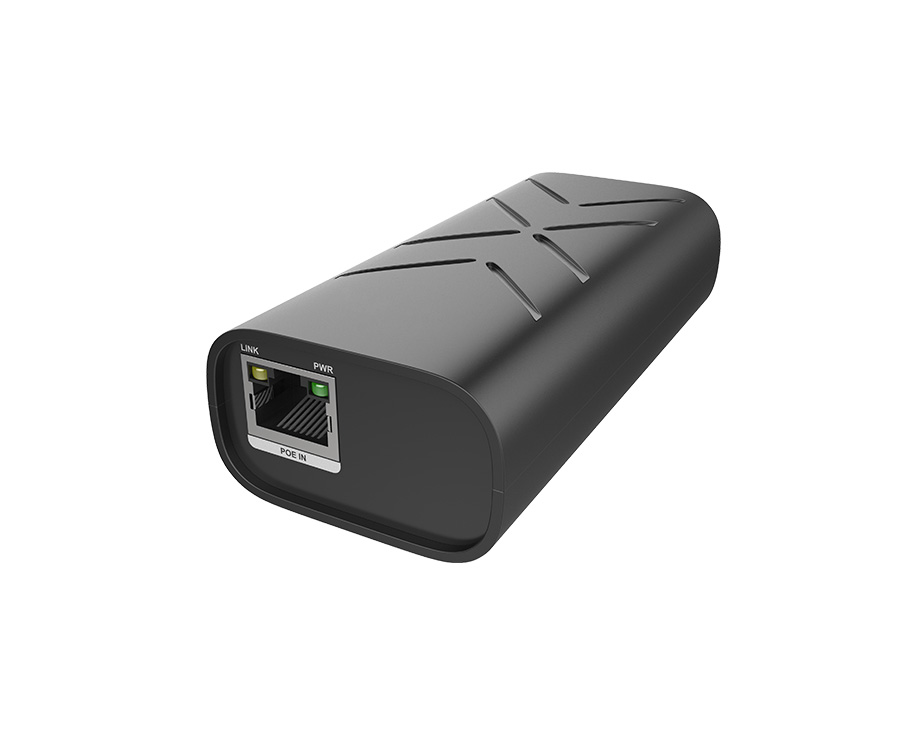

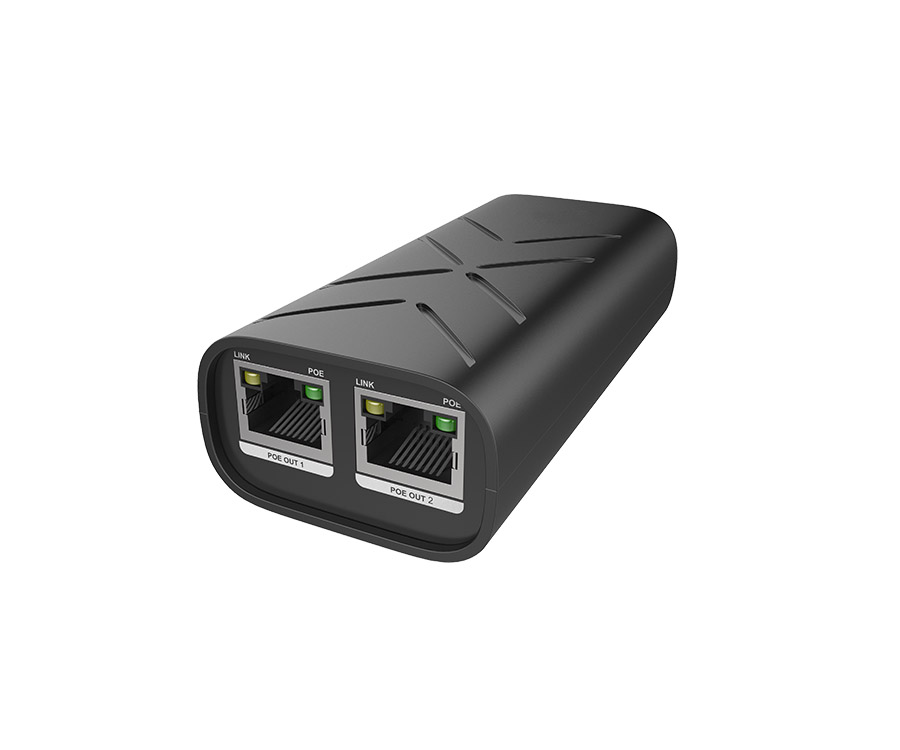

PE201 is an unmanaged PoE extender with 2*10/100/1000M PoE ports and 1*10/100/1000M uplink PD RJ45 port. Port 1-2 can support IEEE802.3af/at PoE standard, single-port PoE power up to 25W. The working power of the PoE extender is taken from the PoE switch and no additional power supply is required. It is installed at the end of the 100 meters network cable to extend the network and POE power supply by 100 meters at full speed. As a PoE power supply device, it can automatically detect and recognize the power receiving equipment that meets the standard and supply power through the network cable. It can supply power to POE terminal equipment such as wireless AP, webcam, VoIP, video access control, etc. through a network cable, to meet the network environment that requires high-density PoE power supply, and to reduce the bandwidth to solve the twisted pair POE transmission within 200 meters. It is suitable for hotels, campuses, factory dormitories, and small and medium-sized enterprises to form a cost-effective network.
Unmanaged mode, plug and play, no configuration, easy to use.
Support 3*10/100/1000Base-TX RJ45 ports extend transmission distance to 200 meters;
Support non-blocking wire-speed forwarding;
Support full-duplex based on IEEE802.3x and half-duplex based on Backpressure;
2* 10/100/1000Base-TX RJ45 ports can support PoE power supply;
Support IEEE 802.3af/at PoE standard, without damaging non-PoE devices;
PoE extender can extend the network signal transmission distance and POE power supply distance;
No need external power supply;
Plug and play, no configuration, easy to use and maintain;
The user-friendly panel shows the device status through the LED indicator of PWR, Link PoE;
Low power consumption, fan-less silent design with advanced ABS and PC flame-retardant plastic shell;
Support -20~55°C wide operating temperature range;
Support CCC,CE, FCC, RoHS standard;
Warranty: 3years;
