5-Port Managed RS-232_RS-485 Ethernet Switches

3-port 10/100M Ethernet+ 2-port 100M FX+ 2-port RS232/485/CAN Managed

Model：IES305-2F-202

Support 3-port 10/100M RJ45+ 2-port 100M FX+ 2-port RS232/485/CAN;
Support static multicast filtering, IGMP Snooping;
Support MW-Ring redundancy technique (failure recovery time <20ms);
Support STP/RSTP/MSTP;
Support managed function such as VLAN, QoS, Trunking, and port mirroring;
Support CLI, WEB, Telnet, SNMP management;
Support dual DC12-48V power supply;
Support -40~75°C wide operating temperature range;

REQUEST A QUOTE

Overview
Feature
Specification
Ordering Information
Download
Video

Introduction

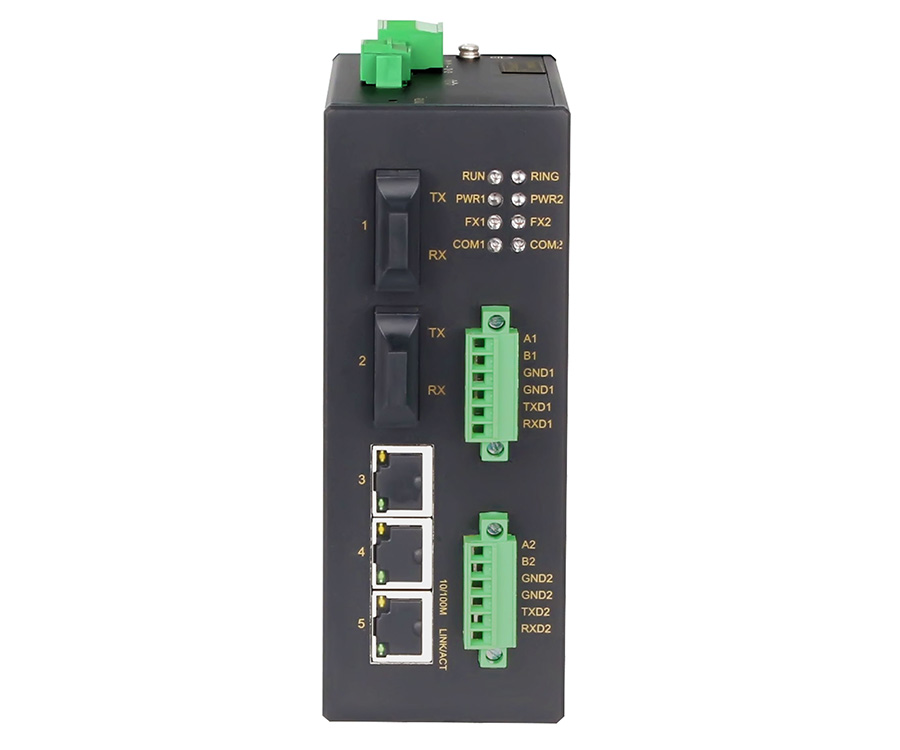

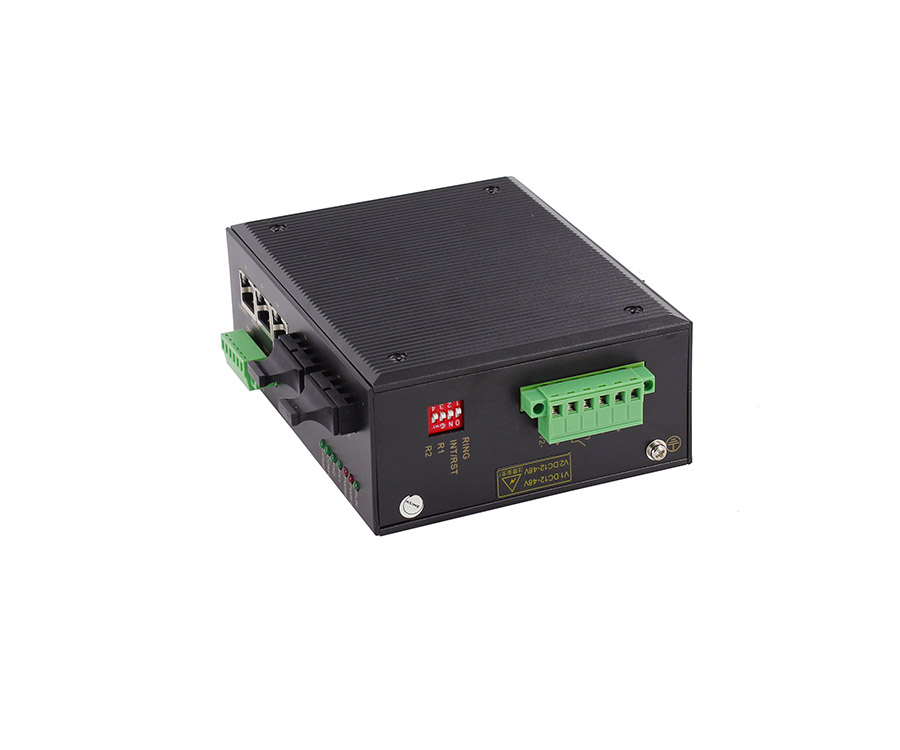

UPCOM IES305-2F-202 is a rugged industrial grade, Din-Rail, layer2, Managed Ethernet switch which supports 3-port 10/100M Base-T(X) +2-port 100Base-FX +2-port RS232/485/CAN. It provided some kinds of advanced network managed function, such as: MW-Ring redundancy technology (failure recovery time<20ms), VLAN, multicast, Quality of Service, Speed control, port mirroring, fault alarm and firmware remote update, also support CLI, WEB, Telnet, SNMP management, provide a user-friendly web console interface for easy configuration.

IES305-2F-202 adopts standard Industrial design, IP40 protection, aluminum alloy shell, support Din-rail or wall installation, fanless design, EMC level 4 protection, dual power DC12-48V, can satisfied the requirement of various industrial applications such as Industrial automation, smart grid, rail transportation industry, safely city, and new energy, etc.

Specification
Product Name	5-port Din-Rail Managed Industrial Ethernet switch with 2-port RS-232/RS-485
Product Model	IES305-2F-202
Port Definition	3-port 10/100M Base-T(X) +2-port 100Base-FX +2-port RS232/485/CAN + 1 Console port
Serial port	Port numbers: 2 port RS232 or RS485
	Connector: 6-core locking 3.08mm terminal block
	Baud rate:300-115.2Kbps
CAN port	Port numbers: 2
	Connector: 6-core locking 3.08mm terminal block
	Baud rate: 1MB/s(MAX)
Console port	RS232/RJ45
Terminal block for power input	5.08mm terminal block
Software Function
Redundancy protocol	Support MW-Ring redundancy and the recovery time<20ms
Redundancy protocol	Support STP/RSTP
Multicast routing	Support IGMP snooping/ IGMP v1/v2/v3
	Support GMRP
	Support static multicast
Management and maintenance	Support Console and Web management
	Support SNMPv1/v2c
	Support unified PC software management
Ethernet Standard	IEEE802.3-10BaseT IEEE802.3u-100BaseTX/100Base-FX IEEE802.3x-Flow Control IEEE802.1p -Class of Service
Switch capability
Priority Queues	4
VLAN Number	1-4096
IGMP Groups	256
MAC Table Size	4K
Backplane bandwidth	1Gbps
Switch Delay	<5μs
Communication distance
Twisted-pair	100m(CAT5/CAT5e cable)
Multi-mode fiber	10/100Base multi-mode: 850nm 2km
Single mode fiber	10/100Base single mode: 1310nm 20km; 1550nm 40/60/80/100/120km
LED indicator lights
Front panel LED lights	Power States LED;
	10/100BaseF(x) LED
	10/100BaseT(x) LED
	Data LED
Restart button	Support
Reset	Support
Ring dialing code	Support
Power

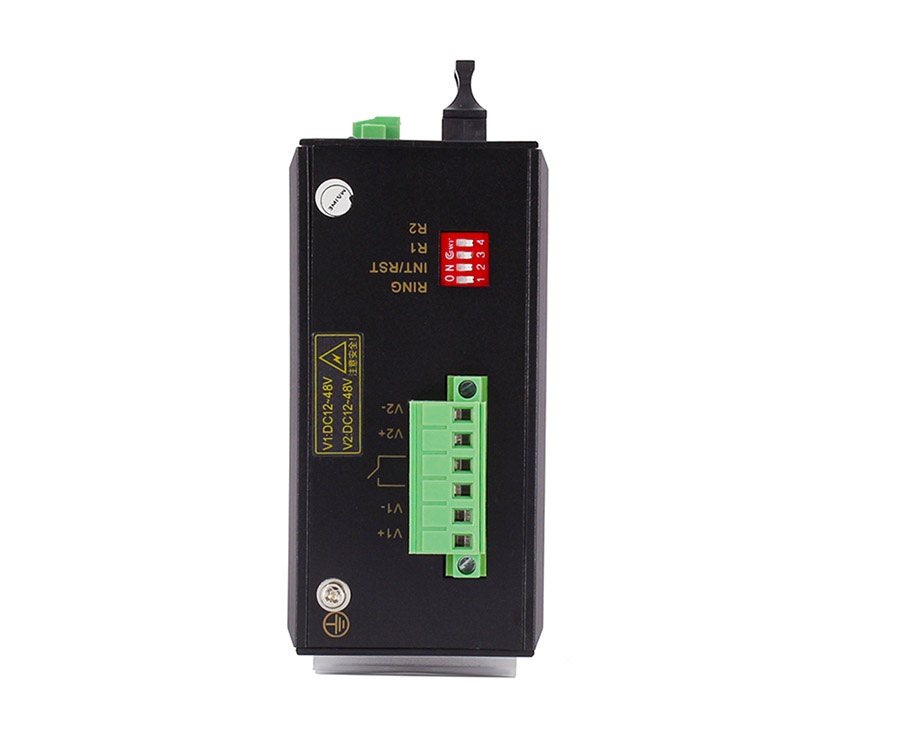

Input power	Dual power DC12-48V
Working Environment
Operating Temperature	-40°C~75°C
Storage temperature	-40°C~85°C
Ambient Humidity	5%~95% (non-condensing)
Physical Characteristics
Shell	IP40 protection, aluminum alloy shell
Installation	35mm din-rail Installation
Dimension	54mm138mm110mm
Industry standard
EMC	EN61000-4-2(ESD), Level 4 EN61000-4-3(RS), Level 4 EN61000-4-4(EFT), Level 4 EN61000-4-5(Surge), Level 4 EN61000-4-6(CS), Level 4 EN61000-4-8, Level 5
Impact	IEC60068–2-27
Falling	IEC60068-2-32
Shock	IEC60068-2-6
Warranty
Warranty	5 Years
Certification	CE, FCC, RoHS

Select	Model Name	Description
	IES305-F-102	4-port 10/100Baes-T(X) + 1-port 100Base-FX +2-port RS232, DC12-48V
	IES305-F-202	4-port 10/100Baes-T(X) + 1-port 100Base-FX +2-port RS485, DC12-48V
	IES305-F-302	4-port 10/100Baes-T(X) + 1-port 100Base-FX +2-port CAN, DC12-48V
	IES305-2F-102	3-port 10/100Baes-T(X) + 2-port 100Base-FX +2-port RS232, DC12-48V
	IES305-2F-202	3-port 10/100Baes-T(X) + 2-port 100Base-FX +2-port RS485, DC12-48V
	IES305-2F-302	3-port 10/100Baes-T(X) + 2-port 100Base-FX +2-port CAN, DC12-48V
