20-Port Unmanaged Layer2 Industrial Ethernet Switch

16-port 10/100M Ethernet + 4-port 100M FX Din-Rail Layer2 Unmanaged

Model：IES4020-4F

Support 16-port 10/100M Base-T(X) + 4-port 100Base-FX;
Plug-and-play, no configuration is required;
Support relay alarm output;
Support IP40 protection, aluminum alloy shell, fanless design;
Support dual DC12-48V or single AC/DC 220V power supply;
Support -40~75°C wide operating temperature range;
DIN-Rail or wall Installation;
Warranty:5years

REQUEST A QUOTE

Overview
Feature
Specification
Ordering Information
Download
Video

Introduction

UPCOM IES4020-4F is a rugged industrial grade, Din-Rail, layer2, Unmanaged Ethernet switch which supports 16-port 10/100M Base-T(X) +4-port 100Base-FX. Plug and play, easy to install, no configuration is required, can be operated at wide temperatures range from -40 to 75°C. two independent power circuits ensure the normal operation of the device when one power supply is faulty.

IES4020-4F adopts standard Industrial design, IP40 protection, aluminum alloy shell, support Din-rail or wall installation, fanless design, support EMC level 4 protection, dual power DC12-48V or single AC/DC220V optional, can meet the requirement of various Industrial automation, Data Center Network, Intelligent Transportation System, Electric Power Industry, and new energy, etc.

Specification
Product Name	20-port 10/100M Din-Rail Unmanaged layer2 Industrial Ethernet switch
Product Model	IES4020-4F
Port Definition	16-port 10/100M RJ45 +4-port 100Base-FX

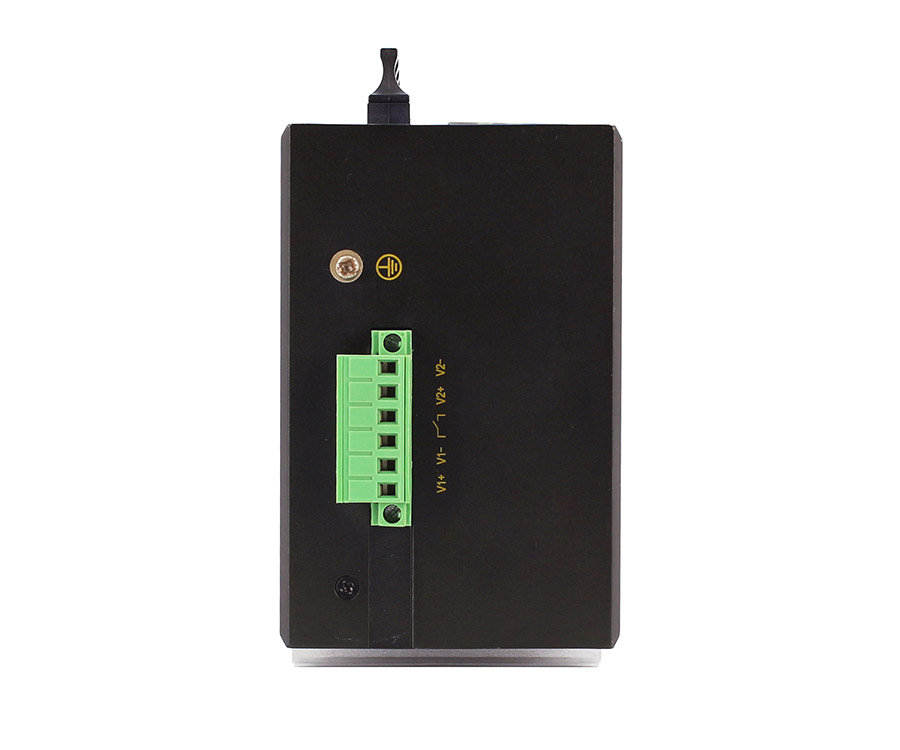

Terminal block for power input	5.08mm terminal block
Terminal block for relay alarm	5.08mm terminal block, 1A@24VDC
Protocol Standard	IEEE802.3i-10BaseT, IEEE802.3u-100BaseTX/100BaseFX
Protocol Standard	IEEE802.3x(Flow Control)
Switch capability
MAC Table Size	8K
Backplane bandwidth	4.8Gbps
Switch Delay	<5μs
Communication distance
Twisted-pair	100m(CAT5/CAT5e cable)
Multi-mode fiber	10/100Base multi-mode: 1310nm 2km
Single mode fiber	10/100Base single mode: 1310nm 20km; 1550nm 40/60/80/100/120km
LED indicator lights
Front panel LED lights	Port light: LINK/ACT;SPEED;
	System work light: RUN
	Power LED: P1/P2
Power
Input power	Dual power DC12-48V or Single power AC/DC220V
Full-load consumption	<10W
Overload protection	support
Inversed protection	support
Redundancy protection	support
Working Environment
Operating Temperature	-40°C~75°C
Storage temperature	-40°C~85°C
Ambient Humidity	5%~95% (non-condensing)
Physical Characteristics
Shell	IP40 protection, aluminum alloy shell
Installation	35mm din-rail Installation
Dimension	156mm120mm72mm
Industry standard
EMC	EN61000-4-2(ESD), Level 4 EN61000-4-3(RS), Level 4 EN61000-4-4(EFT), Level 4 EN61000-4-5(Surge), Level 4 EN61000-4-6(CS), Level 4 EN61000-4-8, Level 5
Impact	IEC60068–2-27
Falling	IEC60068-2-32
Shock	IEC60068-2-6
Warranty
Warranty	5 Years
Certification	CE, FCC, RoHS

Select	Model Name	Description
	IES4020-4F	16-port 10/100M Base-T(X)+4-port 100M FX, Dual DC12-48V
	IES4020-4F-AD220	16-port 10/100M Base-T(X)+4-port 100M FX, Single AC/DC220V
