Managed 8 Port Industrial Ethernet Switch

8-port 10/100M Ethernet + 2-port Gigabit SFP Din-Rail Layer2 Managed

Model：IES3010-2GS

Support 8-port 10/100M RJ45 +2 Gigabit SFP ports;
Support static multicast filtering, IGMP Snooping;
Support MW-Ring redundancy technique (failure recovery time <20ms);
Support STP/RSTP/MSTP;
Support managed function such as VLAN, QoS, Trunking, and port mirroring;
Support CLI, WEB, Telnet, SNMP management;
Support dual DC12-48V or single AC/DC 220V power supply;
Support -40~75°C wide operating temperature range;

REQUEST A QUOTE

Overview
Feature
Specification
Ordering Information
Download
Video

Introduction

UPCOM IES3010-2GS is a rugged industrial grade, Din-Rail, layer2, Managed Ethernet switch which supports 8-port 10/100M RJ45 +2 Gigabit SFP ports. It provided some kinds of advanced network managed function, such as: MW-Ring redundancy technology (failure recovery time<20ms), VLAN, multicast, Quality of Service, Speed control, port mirroring, fault alarm and firmware remote update, also support CLI, WEB, Telnet, SNMP management, provide a user-friendly web console interface for easy configuration.

IES3010-2GS adopts standard Industrial design, IP40 protection, aluminum alloy shell, support Din-rail or wall installation, fanless design, EMC level 4 protection, dual power DC12-48V or single AC/DC220V optional, can satisfied the requirement of various industrial applications such as Industrial automation, smart grid, rail transportation industry, safely city, and new energy applications.

Specification
Product Name	10-port Din-Rail Managed layer2 Industrial Ethernet switch
Product Model	IES3010-2GS

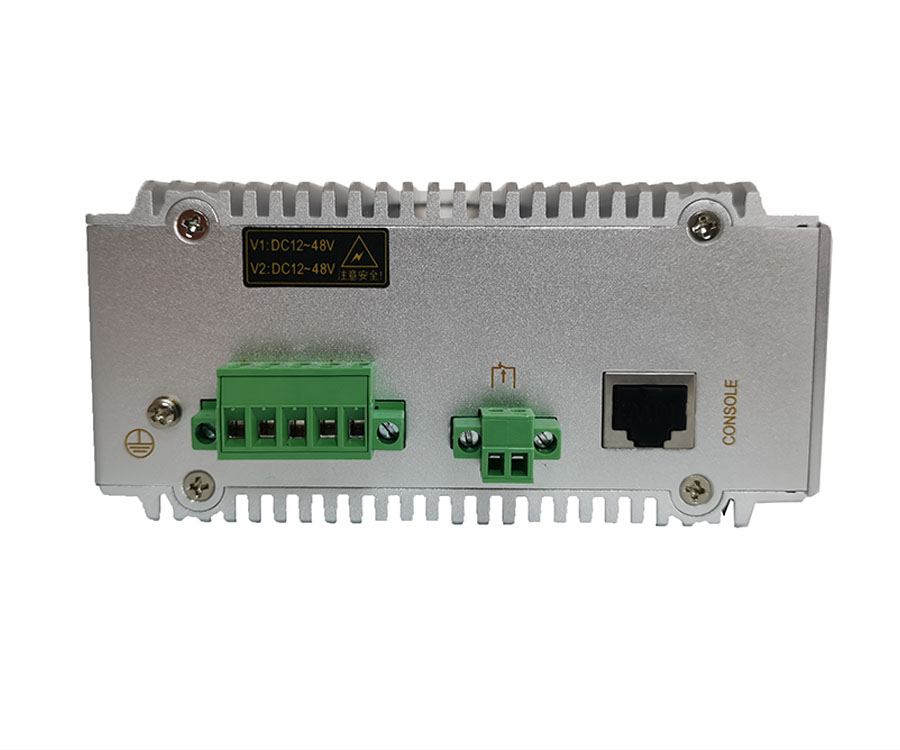

Port Definition	8-port 10/100M RJ45 + 2-port Gigabit SFP +1 Console port
Console port	RS232/RJ45
Terminal block for power input	5.08mm terminal block
Terminal block for relay alarm	5.08mm terminal block,1A@24VDC
Software Function
Redundancy protocol	Support MW-Ring redundancy and the recovery time<20ms
Redundancy protocol	Support STP/RSTP
Multicast routing	Support IGMP snooping/ IGMP v1/v2/v3
	Support GMRP
	Support static multicast
Management and maintenance	Support Console and Web management
	Support SNMPv1/v2c
	Support unified PC software management
Ethernet Standard	IEEE802.3-10BaseT IEEE802.3u-100BaseTX/100Base-FX IEEE802.3x-Flow Control IEEE802.3z-1000BaseLX IEEE802.3ab-1000BaseTX IEEE802.1ab IEEE802.1D-Spanning Tree Protocol IEEE802.1w-Rapid Spanning Tree Protocol IEEE802.1Q -VLAN Tagging IEEE802.1p -Class of Service IEEE802.1X-Port Based Network Access Control
Switch capability
Priority Queues	4
VLAN Number	1-4096
IGMP Groups	256
MAC Table Size	8K
Backplane bandwidth	5.8Gbps
Switch Delay	<5μs
Communication distance
Twisted-pair	100m(CAT5/CAT5e cable)
Multi-mode fiber	10/100Base multi-mode: 850nm 2km
Single mode fiber	10/100Base single mode: 1310nm 20km; 1550nm 40/60/80/100/120km
LED indicator lights
Front panel LED lights	Port light: LINK/ACT;SPEED;GX
	Running light: RUN
	Power LED: PWR1/PWR2
	Ring LED: RING
Power
Input power	Dual power DC12-48V or Single power AC/DC220V
Full-load consumption	<10W
Overload protection	support
Inversed protection	support
Redundancy protection	support
Working Environment
Operating Temperature	-40°C~75°C
Storage temperature	-40°C~85°C
Ambient Humidity	5%~95% (non-condensing)
Physical Characteristics
Shell	IP40 protection, aluminum alloy shell
Installation	35mm din-rail Installation
Dimension	56mm182mm128mm
Industry standard
EMC	EN61000-4-2(ESD), Level 4 EN61000-4-3(RS), Level 4 EN61000-4-4(EFT), Level 4 EN61000-4-5(Surge), Level 4 EN61000-4-6(CS), Level 4 EN61000-4-8, Level 5
Impact	IEC60068–2-27
Falling	IEC60068-2-32
Shock	IEC60068-2-6
Warranty
Warranty	5 Years
Certification	CE, FCC, RoHS

Select	Model Name	Description
	IES3010-2GS-AD220	8-port 10/100M Base-T(X)+ 2-port Gigabit SFP, Single AC/DC220V
	IES3010-2F-2GS-AD220	6-port 10/100M Base-T(X)+2-port 100M FX+2-port Gigabit SFP, Single AC/DC220V
	IES3010-8F-2GS	8-port 100M FX+2-port Gigabit SFP, Dual DC12-48V
	IES3010-4F-2GS	4-port 10/100M Base-T(X)+4-port 100M FX+2-port Gigabit SFP, Dual DC12-48V
	IES3010-2F-2GS	6-port 10/100M Base-T(X)+2-port 100M FX+2-port Gigabit SFP, Dual DC12-48V
	IES3010-2GS	8-port 10/100M Base-T(X) +2-port Gigabit SFP, Dual DC12-48V
	IES3010-4F-2GS-AD220	4-port 10/100M Base-T(X)+4-port 100M FX+2-port Gigabit SFP, Single AC/DC220V
	IES3010-8F-2GS-AD220	8-port 100M FX+2-port Gigabit SFP, Single AC/DC220V

Date	Version	Description	Download
2018-07-31	1.0	8-port 10/100M Ethernet + 2-port Gigabit SFP Din-Rail Layer2 Managed

Date	Version	Description	Download
2018-07-31	1.0	8-port 10/100M Ethernet + 2-port Gigabit SFP Din-Rail Layer2 Managed
