18-Port Managed Layer2 Industrial Ethernet Switches

16-port 10/100M Ethernet + 2-port 10/100M FX Din-Rail Layer2 Managed

Model：IES3018-2F

Support 16-port 10/100M RJ45 + 2-port 100M FX;
Support static multicast filtering, IGMP Snooping;
Support MW-Ring redundancy technique (failure recovery time <20ms);
Support STP/RSTP/MSTP;
Support managed function such as VLAN, QoS, Trunking, and port mirroring;
Support CLI, WEB, Telnet, SNMP management;
Support dual DC12-48V or single AC/DC 220V power supply;
Support -40~75°C wide operating temperature range;

REQUEST A QUOTE

Overview
Feature
Specification
Ordering Information
Download
Video

Introduction

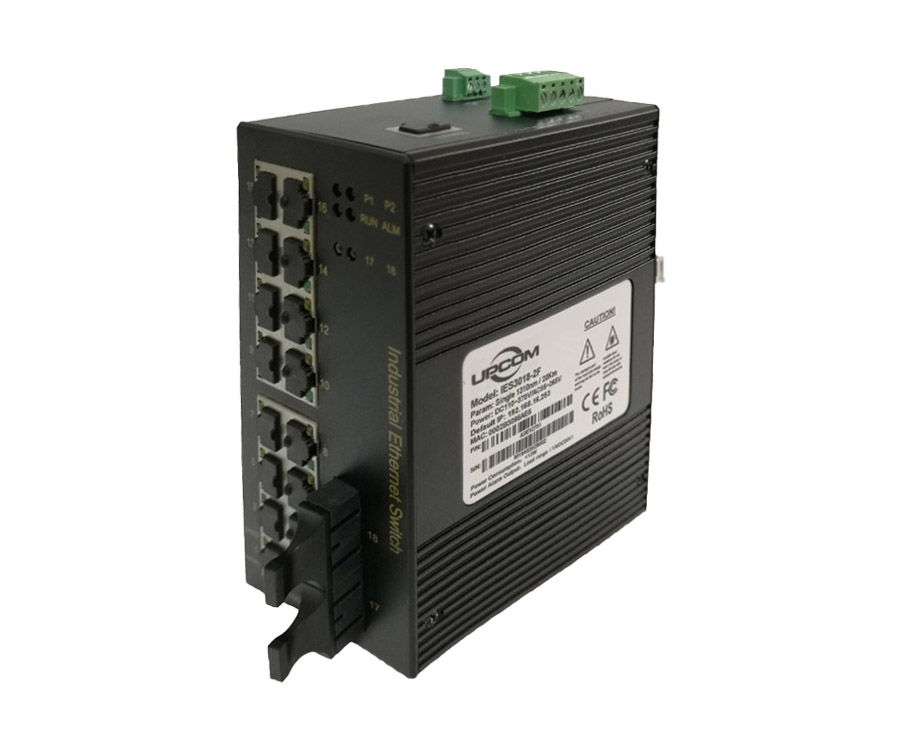

IES3018-2F is a rugged industrial grade, Din-Rail, layer2, Managed Ethernet switch which supports 16-port 10/100M Base-T(X) + 2-port 100M FX. It provided some kinds of advanced network managed function, such as: MW-Ring redundancy technology (failure recovery time<20ms), VLAN, multicast, Quality of Service, Speed control, port mirroring, fault alarm and firmware remote update, also support CLI, WEB, Telnet, SNMP management, provide a user-friendly web console interface for easy configuration.

UPCOM IES3018-2F adopts standard Industrial design, IP40 protection, aluminum alloy shell, support Din-rail or wall installation, fanless design, EMC level 4 protection, dual power DC12-48V or single AC/DC220V optional, can satisfied the requirement of various industrial applications such as Industrial automation, smart grid, rail transportation industry, safely city, and new energy, etc.

led indicate.jpg

INSTALLATION 2.jpg

Specification
Product Name	18-port 10/100M Din-Rail Managed layer2 Industrial Ethernet switch
Product Model	IES3018-2F
Port Definition	16-port 10/100M RJ45 +2-port 100M FX+1 Console port
Console port	RS232/RJ45
Terminal block for power input	5.08mm terminal block
Terminal block for relay alarm	5.08mm terminal block,1A@24VDC
Software Function
Redundancy protocol	Support MW-Ring redundancy and the recovery time<20ms
Redundancy protocol	Support STP/RSTP
Multicast routing	Support IGMP snooping/ IGMP v1/v2/v3
	Support GMRP
	Support static multicast
Management and maintenance	Support Console and Web management
	Support SNMPv1/v2c
	Support unified PC software management
Ethernet Standard	IEEE802.3-10BaseT IEEE802.3u-100BaseTX/100Base-FX IEEE802.3x-Flow Control IEEE802.3z-1000BaseLX IEEE802.3ab-1000BaseTX IEEE802.1ab IEEE802.1D-Spanning Tree Protocol IEEE802.1w-Rapid Spanning Tree Protocol IEEE802.1Q -VLAN Tagging IEEE802.1p -Class of Service IEEE802.1X-Port Based Network Access Control
Switch capability
Priority Queues	4
VLAN Number	1-4096
IGMP Groups	256
MAC Table Size	8K
Backplane bandwidth	4Gbps
Switch Delay	<5μs
Communication distance
Twisted-pair	100m(CAT5/CAT5e cable)
Multi-mode fiber	10/100Base multi-mode: 850nm 2km
Single mode fiber	10/100Base single mode: 1310nm 20km; 1550nm 40/60/80/100/120km
LED indicator lights
Front panel LED lights	Port light: LINK/ACT;SPEED;
	Running light: RUN
	Power LED: PWR1/PWR2
Power
Input power	Dual power DC12-48V or Single power AC/DC220V
Input power	DC12V/DC24V/DC48V Optional
Full-load consumption	<10W
Overload protection	support
Inversed protection	support
Redundancy protection	support
Working Environment
Operating Temperature	-40°C~75°C
Storage temperature	-40°C~85°C
Ambient Humidity	5%~95% (non-condensing)
Physical Characteristics
Shell	IP40 protection, aluminum alloy shell
Installation	35mm din-rail Installation
Dimension	72mm156mm120mm
Industry standard
EMC	EN61000-4-2(ESD), Level 4 EN61000-4-3(RS), Level 4 EN61000-4-4(EFT), Level 4 EN61000-4-5(Surge), Level 4 EN61000-4-6(CS), Level 4 EN61000-4-8, Level 5
Impact	IEC60068–2-27
Falling	IEC60068-2-32
Shock	IEC60068-2-6
Warranty
Warranty	5 Years
Certification	CE, FCC, RoHS

Select	Model Name	Description
	IES3018-2F	16-port 10/100M Base-T(X) +2-port 100M FX, Dual DC12-48V
	IES3018-2F-AD220	16-port 10/100M Base-T(X) +2-port 100M FX, Single AC/DC220V

Date	Version	Description	Download
2018-07-31	1.0	16-port 10/100M Ethernet + 2-port 10/100M FX Din-Rail Layer2 Managed

Date	Version	Description	Download
2018-07-31	1.0	16-port 10/100M Ethernet + 2-port 10/100M FX Din-Rail Layer2 Managed
