Introduction

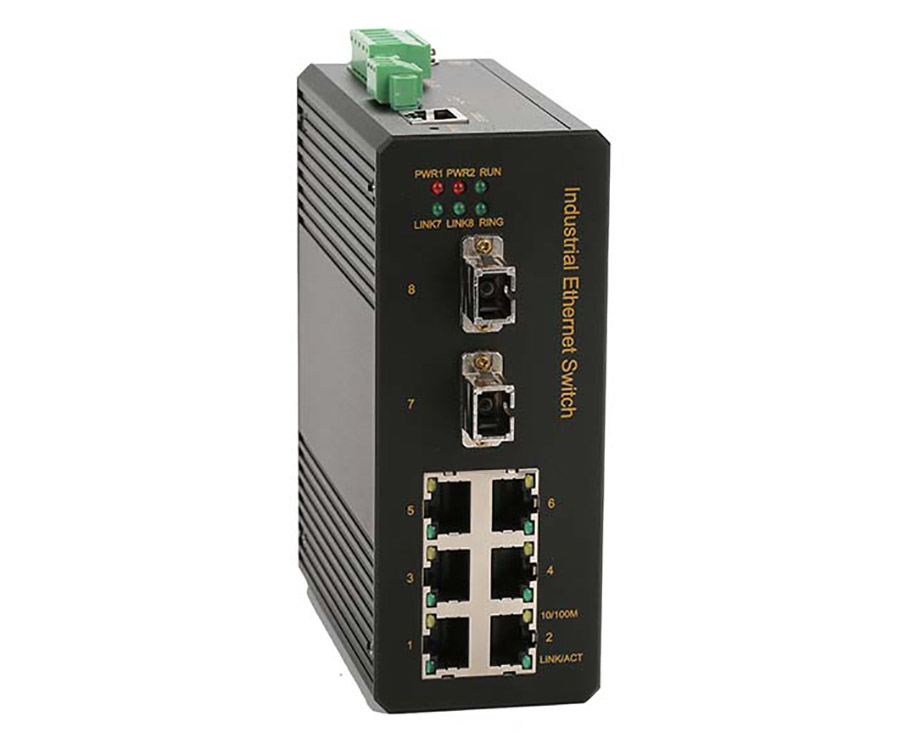

UPCOM BIES508-2F is a rugged industrial-grade, Din-Rail, layer2, Managed optical road by-pass switch that supports 6-port 10/100M Base-T(X) +2-port 100Base-FX. can be operated at wide temperatures range from -40 to 75°C. the 2 fiber ports are single-fiber bidirectional interface, which supports BY-PASS power-down straight-through function, ensures the integrity of the fiber link and improves the reliability of the overall network structure.
BIES508-2F provides some kinds of advanced network managed function, such as: MW-Ring redundancy technology (failure recovery time<20ms), VLAN, multicast, Quality of Service, Speed control, port mirroring, fault alarm and firmware remote update, also support CLI, WEB, Telnet, SNMP management, provide a user-friendly web console interface for easy configuration.
BIES508-2F adopts standard Industrial design, IP40 protection, aluminum alloy shell, support Din-rail installation, fanless design, support EMC level 4 protection, dual power DC12-48V, can meet the requirement of various Industrial automation, Intelligent Transportation System, Electric Power Industry applications.
Support 6-port 10/100M RJ45 + 2-port 100M FX;
Support BY-PASS (maintain network connectivity when the in-line system fails);
Support static multicast filtering, IGMP Snooping;
Support MW-Ring redundancy technique (failure recovery time <20ms);
Support STP/RSTP/MSTP;
Support managed function such as VLAN, QoS, Trunking, and port mirroring;
Support CLI, WEB, Telnet, SNMP management;
Support firmware upgrade online;
Support relay alarm output;
Support indicator status display;
Support IP40 protection, aluminum alloy shell, fanless design;
Support Broadcast storm suppression;
Support dual DC12-48V power supply;
Power supply input support anti-reverse protection;
Support over Voltage, over current, EMC protection;
Support -40~75°C wide operating temperature range;
DIN-Rail Installation;
Warranty:5years
