Introduction

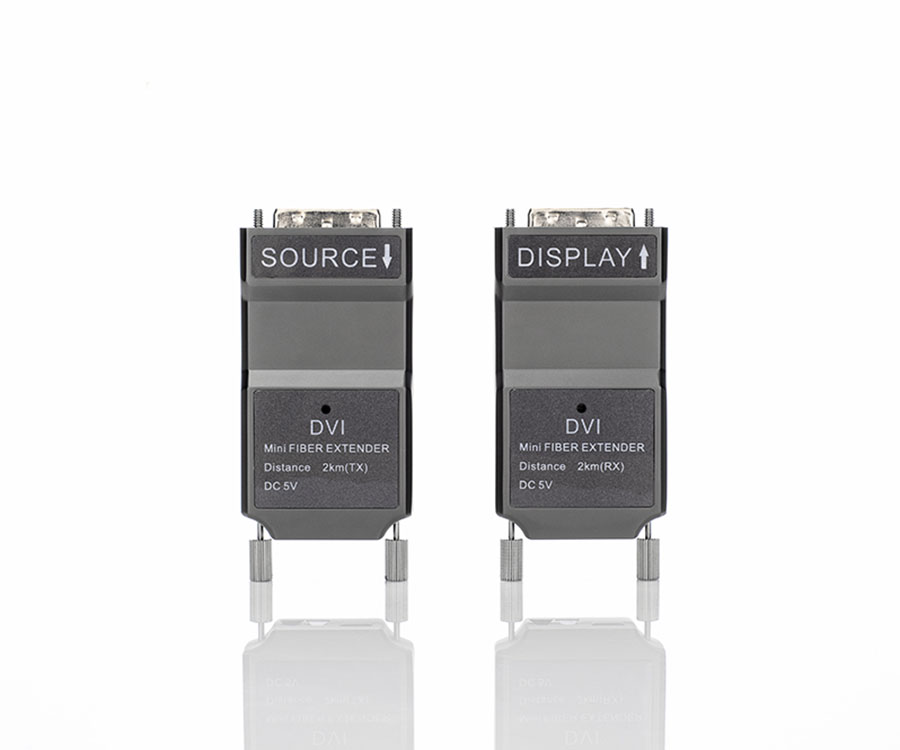

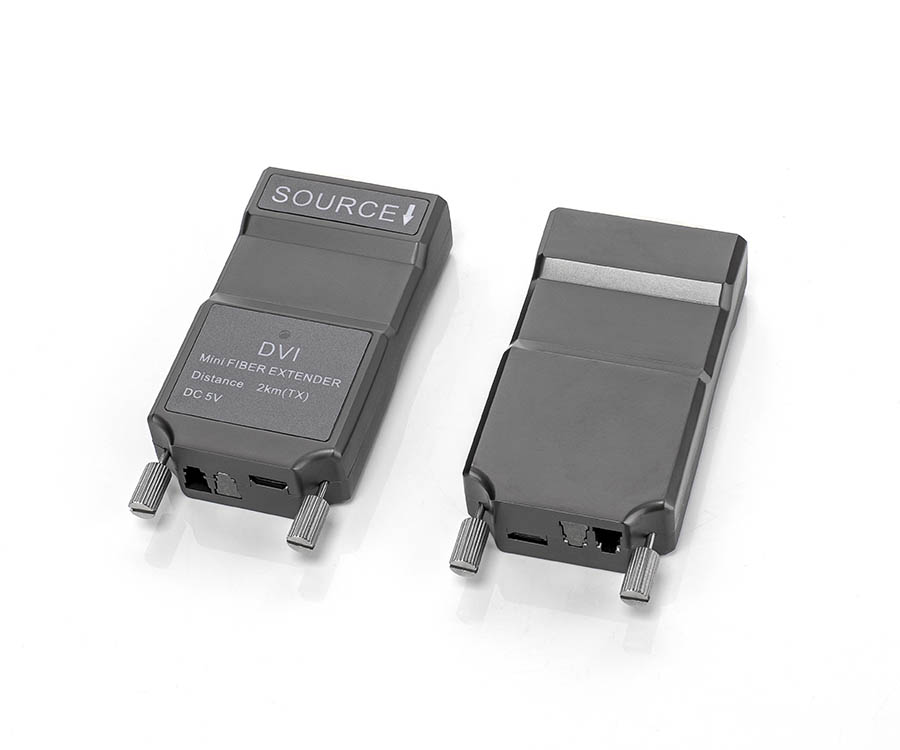

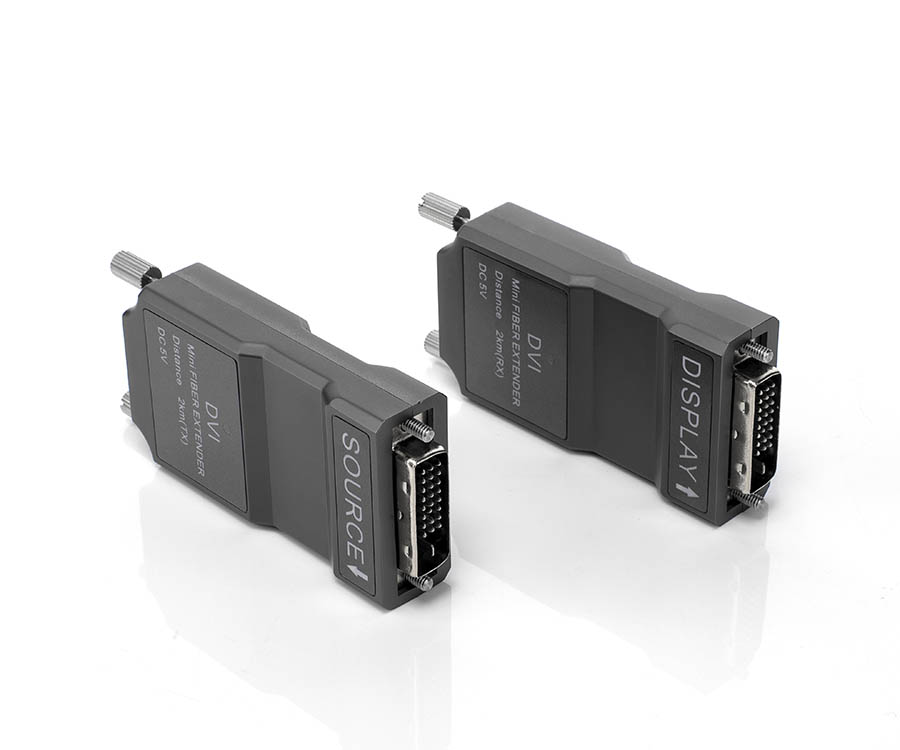

UPCOM Mini DVI 1.0 optical converter is developed to transmit 2K DVI video signal through a core/two core fiber to achieve no delay,no compression,high quality signal extension of 1 km.
Mini DVI 1.0 optical converter adopts video processing and photoelectric conversion integrated design,high integration,small size,its optical components and core circuits are imported components,stable performance,suitable for different working environments.
Mini DVI 1.0 optical converter conforms to the international HDCP protocol 1.4 standard,automatic identification of EDID,with power off EDID memory storage function.
The power consumption of the mini DVI 1.0 optical converter is less than 1.5W,and it uses micro-USB port for supply power,support power supply by charging bank,and has strong flexibility in use.
Features
Support HDCP protocol 1.4 standard;
Support 1920*1200@60Hz resolution and downward compatibility;
Support for EDID automatic identification;
Support EDID memory storage function after power off;
Support RGB4:4:4,YUV4:4:4/4:2:2/4:2:0 video format;
Support single-mode dual-fiber/single-fiber transmission of 1KM;
Support the status light display;
Support power supply by charging bank ;
Support the mutual communication with our Mini 4K HDMI series;
Plug and play,without debugging;
Wide range of operational temperature (-20°C ~75°C)；
Warranty: 3 years;
Specification
Fiber Optical |
Wavelength | 1310nm (dual fiber) 1310-1550nm (single fiber) |
Rate | 10Gbps |
Tx power | ＞-3db |
Rx sensitivity | ＞-10db |
Fiber connector | LC |
DVI index |
Specification | DVI-D (pure digital signal) |
Version | DVI 1.0 (single-link) |
Bandwidth | 1.65GHz |
Pixel clock | 165MHz |
Resolution | 1920*1200@60Hz and downward compatibility |
Physical interface | DVI 24+1 male type |
Power index |
Power supply | 5V |
Power dissipation | ＜1.5W |
Physical interface | Micro-USB |
Other |
Shell metal | Zine-alloy |
Dimensions | 89*41*17mm |
Net weight | 0.3KG |
Way to install | Direct plug-in |
Color | The gun color |
Material of Packing | Kraft paper |
Package size | 210*160*46mm |
Gross weight | 0.5KG |
Operating temperature | -20°C ~ +75°C |
Storage temperature | -40°C ~ +85°C |
Relative Humidity | 0%~95% ( no condensation) |
Warranty | 3 Years |
