Introduction

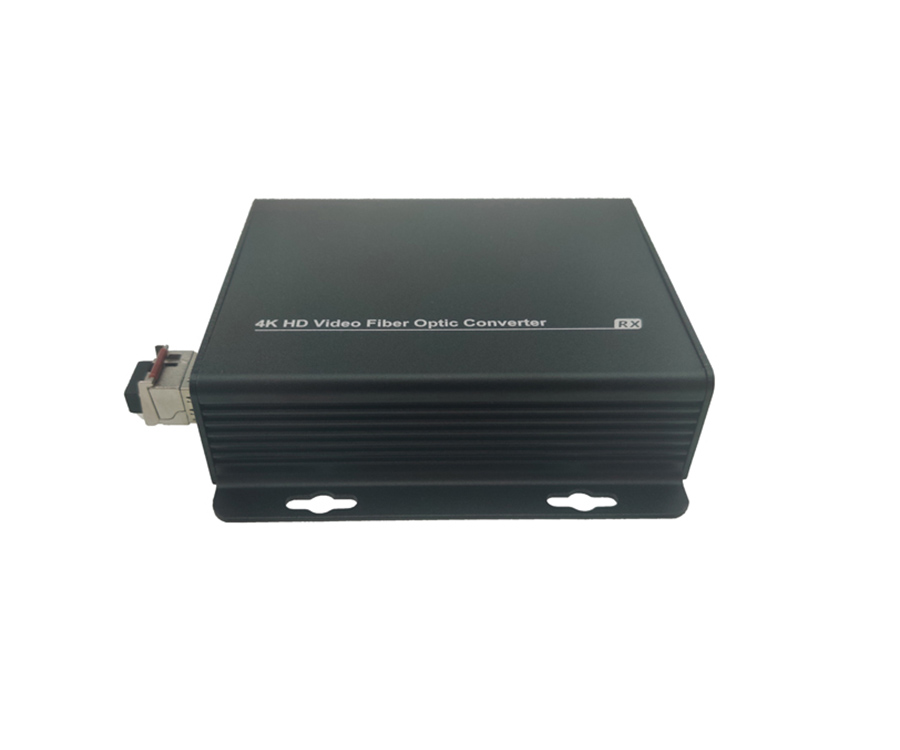

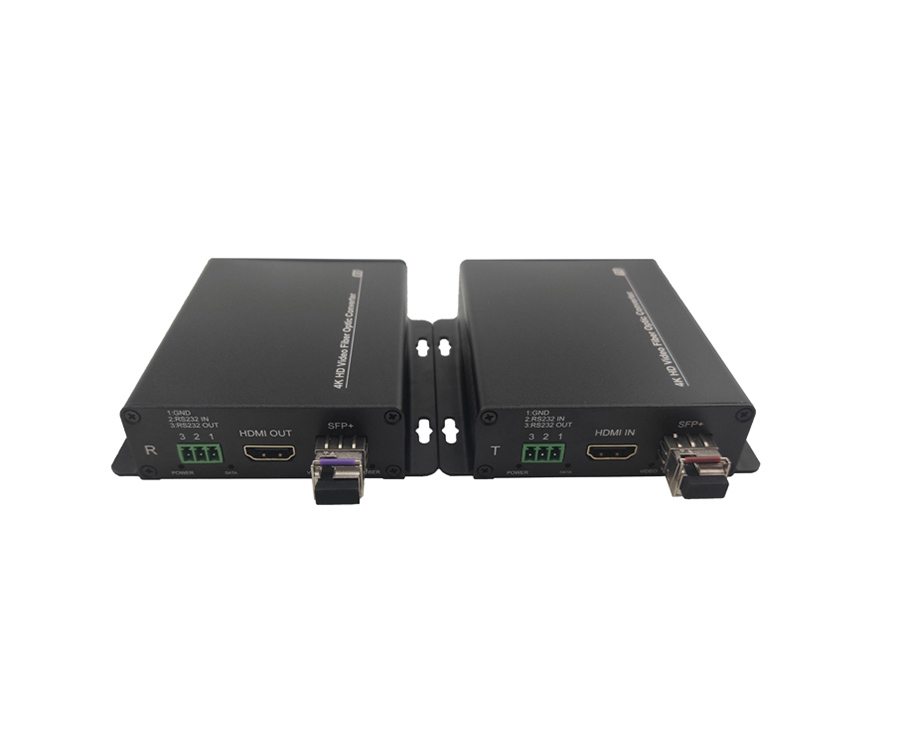

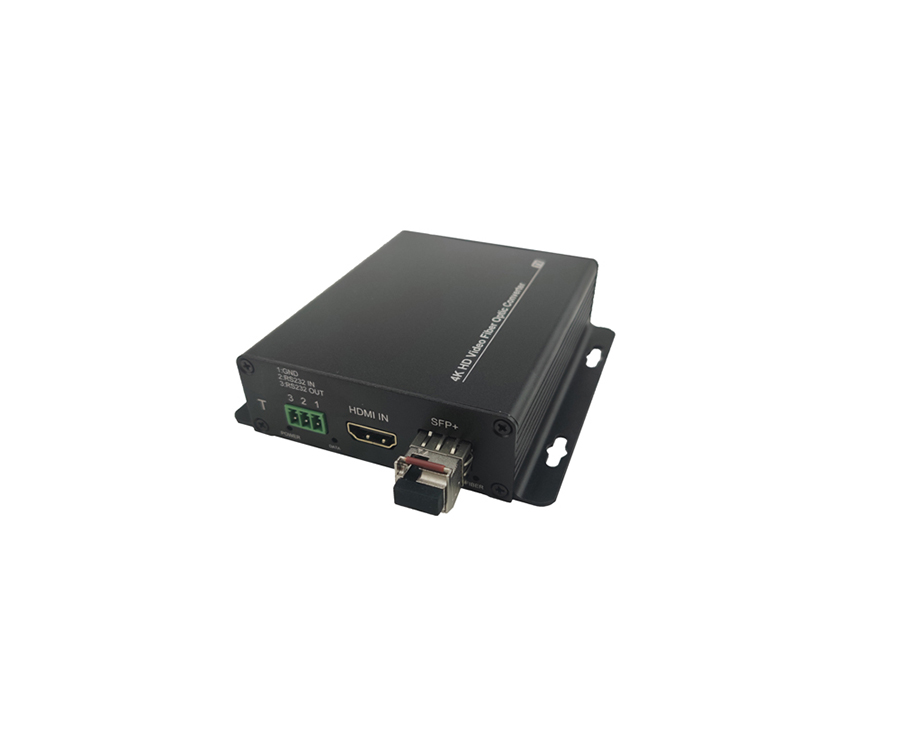

UPCOM 4K HDMI video to fiber optical converter HD0111-10G is composed of the transmitter and the receiver. The video, audio and data output from the computer host (HD video signal source, HD DVD/DVR and other devices) are extended to the remote user through one core optical fiber, and the image and sound of the computer host are played in real time at the remote end.
Features
HDMI video support maximum resolution 4096*2160@30Hz and downward compatibility;
Support international standard HDMI1.4 HDCP1.4;
EDID transparent transmission mode;
Support RGB&YCBCR4:4:4 YUV4:4:4 /4:2:2/4:2:0;
Support DDC/CEC/HPD signal;
Support 1 channel bidirectional full-duplex RS232 (half-duplex RS485 optional);
Support Single-fiber or dual-fiber (optional) ;
Support multi-mode transmission distance 1KM, single-mode transmission 10KM;
Real-Time Video Transmission for Exceptional Quality and Resolution;
Support hot swap signal, plug and play, no setting required;
Support power supply DC12V;
Wide range of operational temperature (-20°C ~75°C)；
Warranty: 3 years;
Specification
Fiber Optical |
Wavelength | 1310-1550nm |
Rate | 10Gbps |
Tx power | ＞-5db |
Rx sensitivity | ＞-14db |
Fiber connector | LC |
Video |
Video bandwidth | 10GHz Gbps |
Resolution | 4096*2160@30Hz downward compatibility |
Maximum pixel clock | 297MHZ |
Effective cable length | 10M |
Physical interface | HDMI female |
RS232 data index（3-wire system,full duplex）standard |
Baud rate | 256000Hz downward compatibility |
Data bits | 8 bits |
Physical interface | 3-pin phoenix terminal |
RS485 data index（2-wire system,half duplex) |
Error rate | <10^-9 |
Bit rate | 0-400Kbps |
Physical interface | 3-pin phoenix terminal |
Other |
Operating temperature | -20°C ~ +75°C |
Storage temperature | -40°C ~ +85°C |
Power supply | 12V1A |
Power dissipation | ＜1.5W |
Case | Aluminium alloy |
Product net weight | 0.2kg/pcs |
Product weight | 0.75kg/pair |
Packing size | 275*220*55mm |
Relative Humidity | 0%~95% ( no condensation) |
MTBF | 100,000 hours |
Warranty | 3 Years |
