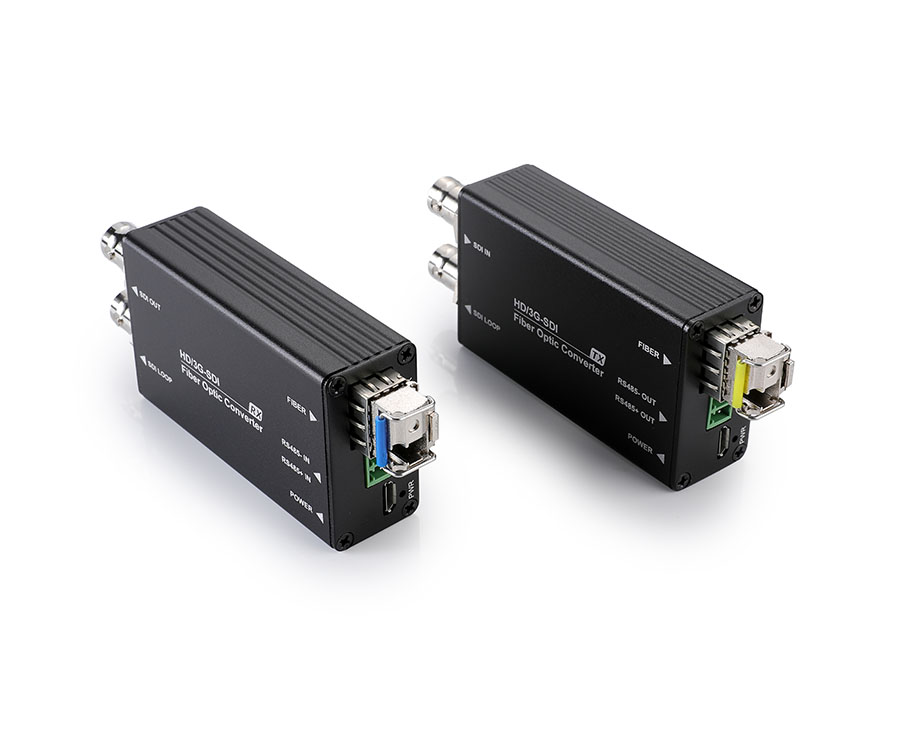

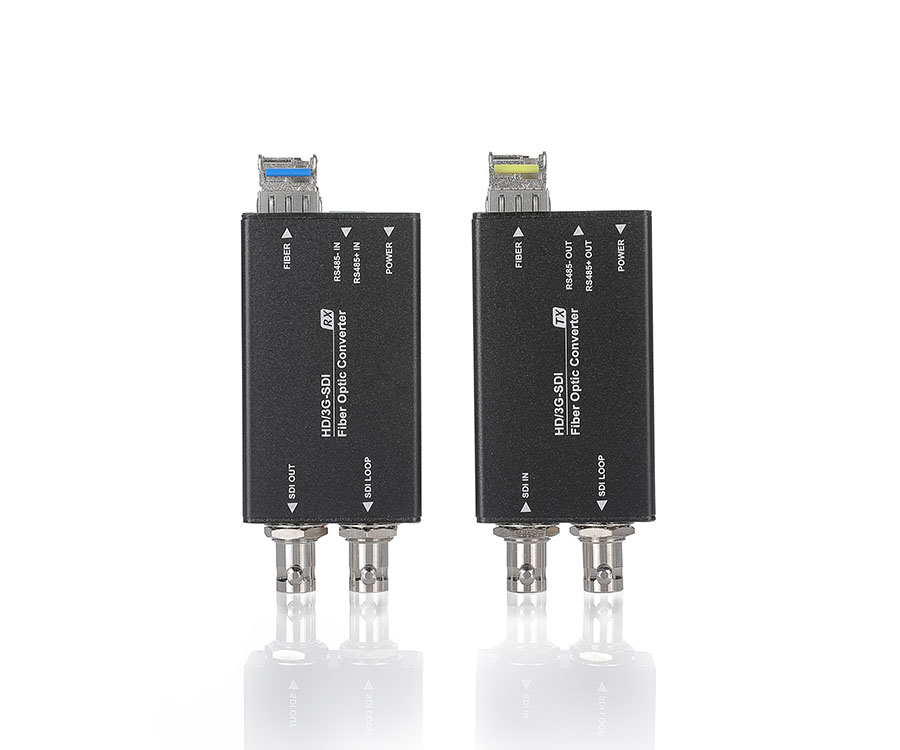

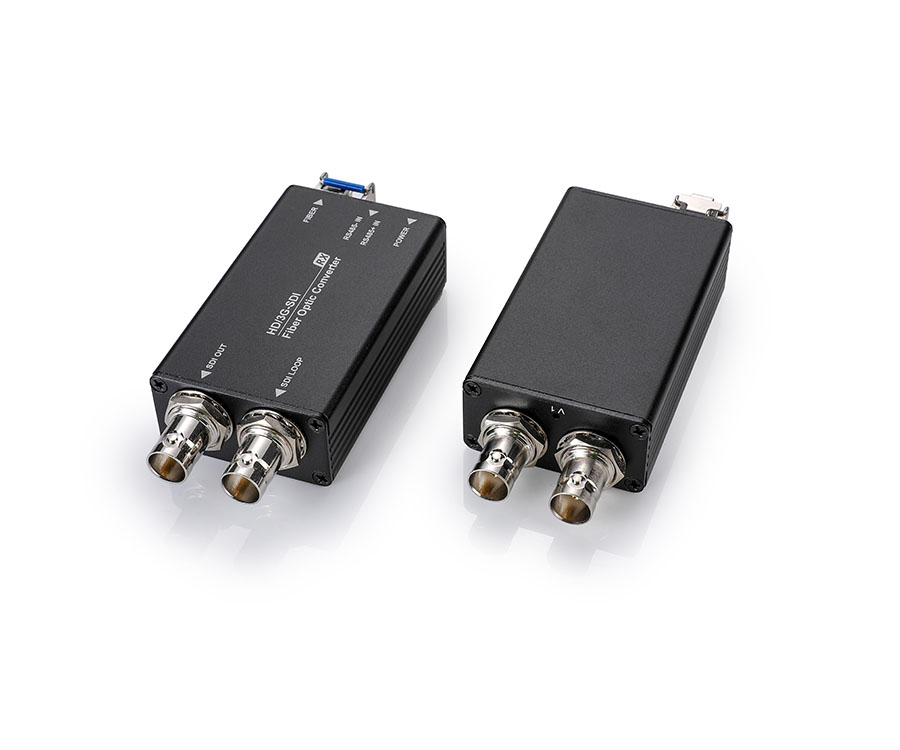

Introduction

UPCOM Mini 3G-SDI video to fiber optical converter adopts international advanced all-digital gigabit optical fiber transmission technology, the 3G-SDI video signal can be transmitted through one fiber with non-distortion, high-quality, long-distance transmission. This series of video to fiber optical converter has stable performance, clear picture quality, and high stability with LED status indication on the body of device. The working status of devices can be visually observed. Besides, the switch value, voltage, working status and other reverse useful signal information can be controlled by RS485 or RS232.This ensures our devices more flexible when meet different customer requirements.

Features

 SDI video support maximum resolution 1920*1080@60Hz backward compatibility;

 Support backward compatibility with HD-SDI and SD-SDI;

 Support re-timing function；

 Support video loop out function;

 Support one channel reverse RS485 data;

 Support multi-mode transmission distance 500M, single mode 20KM;

 Delay＜2ms;

 Plug and play, no setup required;

 Devices are used in pairs which including transmitter and receiver;

 Wide range of operational temperature (-20°C ~75°C)；

 Warranty: 3 years;

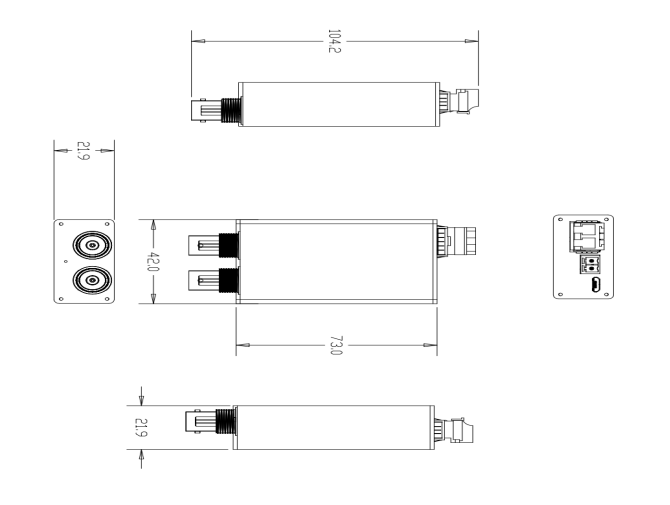

Dimension

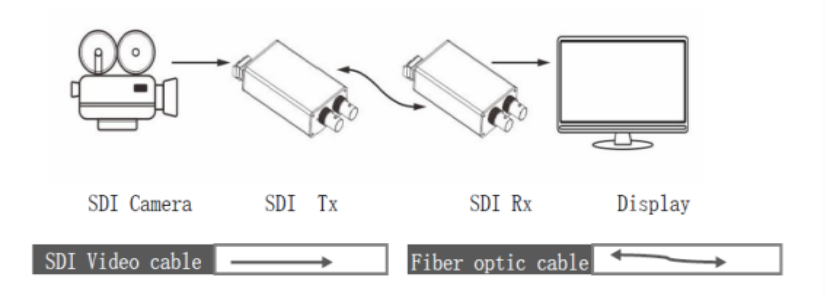

Connection

Equipment and installation procedures:

 Connect the 3GSDI optical transmitter to the signal source;

 Insert the LC fiber optical into the 3GSDI optical transmitter;

 Insert the 5V power supply to USB power port of the 3GSDI optical transmitter;

 Insert the 3GSDI optical receiver into the display;

 Insert the LC fiber cable into the 3GSDI optical receiver;

 Insert the 5V power supply to USB power port of the 3GSDI optical receiver;

Attention

Lightning protection, static electricity and grounding:

It is recommended that when install the device, consideration should be given to the impact of grounding by lightning, and take prevention measures. Strong static electricity will damage the optical device and data chip in the equipment. It is recommended that when plug/unplug the data port of the optical converter, please disconnect the power supply of the optical converter first.

Fiber and optical components:

Be careful when plugging the optical fiber as optical components of the optical converter is very fragile, and it should avoid causing damage to the optical components. It should be noted that the light source produced by the optical components of the optical converter will be harmful to eyes, so do not have direct eye contact with the optical components of optical converter. If you need to detect the optical power of the optical converter, please use the optical power meter.

Features

 SDI video support maximum resolution 1920*1080@60Hz backward compatibility;

 Support backward compatibility with HD-SDI and SD-SDI;

 Support re-timing function；

 Support video loop out function;

 Support one channel reverse RS485 data;

 Support multi-mode transmission distance 500M, single mode 20KM;

 Delay＜2ms;

 Plug and play, no setup required;

 Devices are used in pairs which including transmitter and receiver;

 Wide range of operational temperature (-20°C ~75°C)；

 Warranty: 3 years;
