Introduction

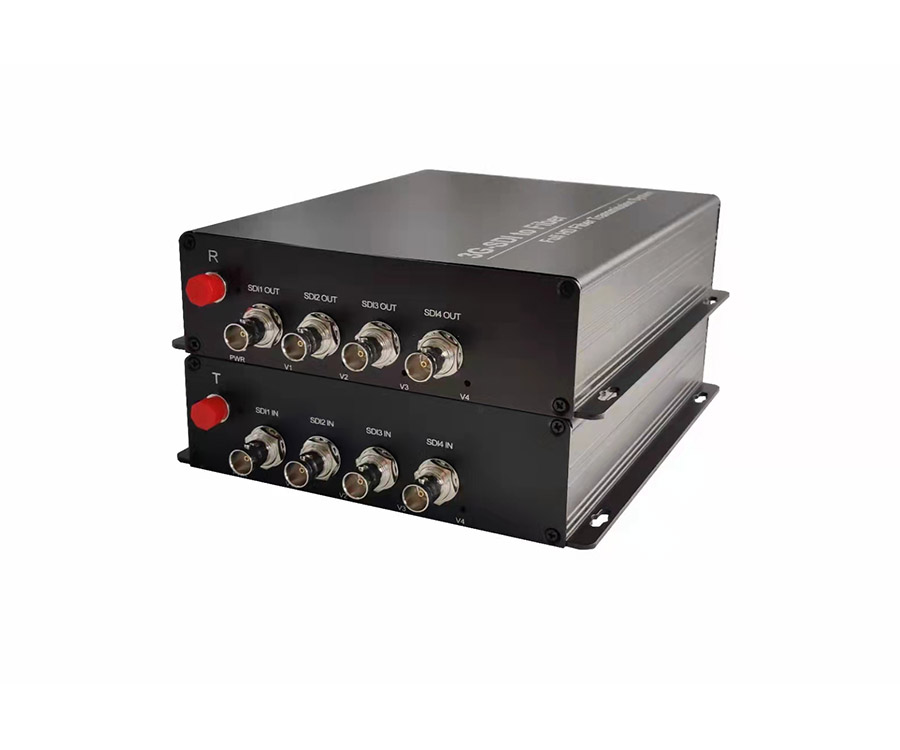

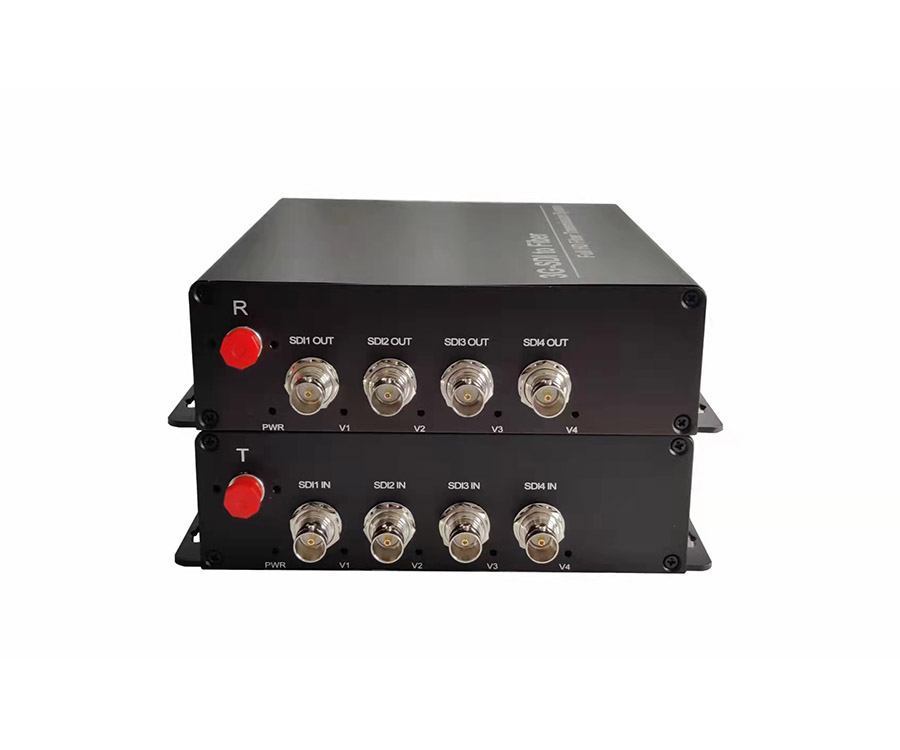

UPCOM 3G-SDI0400 video digital optical converter adopts international advanced all-digital gigabit optical fiber transmission technology, 4 channel HD-SDI/3G-SDI video signal can be transmitted through 1 fiber with non- Distortion, high-quality, long-distance transmission.This series of video to fiber converter has Stable performance, clear picture quality., and high Stability with LED Status Indication on the body of device. The working status of devices can be visually observed. At the same time, the switch value, voltage, working status and other reverse useful signal information can be controlled by RS485 or RS232.This makes our devices more flexible to meet different customers requirements.

Features

 Support 4 channel of HD-SDI/3G-SDI signal transmission through one optical fiber;

 Comply with DVB-ASI, SMPTE424M, SMPTE292M, and SMPTE259M (C) standards;

 Extends uncompressed multi-rate 3G-SDI, HD-SDI or SD-SDI video over fiber;

 Support clock recovery, clock shaping;

 Supports embedded digital audio stream;

 Single-Mode Fiber Support for Distances up to 60 km;

 Real-Time Video Transmission for Exceptional Quality and Resolution;

 LED Status Provide Rapid Indication of Operating Parameters;

 No EMI or RFI and no ground loops;

 Support hot swap,stand alone or rack-mount;

 Can be produced according to customer requirements and OEM is available;

 Support power supply DC5V;

 Wide range of operational temperature (-20°C ~75°C)；

 Warranty: 3 years;

 Support 4 channel of HD-SDI/3G-SDI signal transmission through one optical fiber;

 Comply with DVB-ASI, SMPTE424M, SMPTE292M, and SMPTE259M (C) standards;

 Extends uncompressed multi-rate 3G-SDI, HD-SDI or SD-SDI video over fiber;

 Support clock recovery, clock shaping;

 Supports embedded digital audio stream;

 Single-Mode Fiber Support for Distances up to 60 km;

 Real-Time Video Transmission for Exceptional Quality and Resolution;

 LED Status Provide Rapid Indication of Operating Parameters;

 No EMI or RFI and no ground loops;

 Support hot swap,stand alone or rack-mount;

 Can be produced according to customer requirements and OEM is available;

 Support power supply DC5V;

 Wide range of operational temperature (-20°C ~75°C)；

 Warranty: 3 years;

REQUEST A QUOTE

Datasheet

Date	Version	Description	Download
2015-05-19	1.0	4-Channel HD-SDI/3G-SDI Video over Fiber Converter, 1080P

User's Manual

Date	Version	Description	Download
2015-05-19	1.0	4-Channel HD-SDI/3G-SDI Video over Fiber Converter, 1080P
