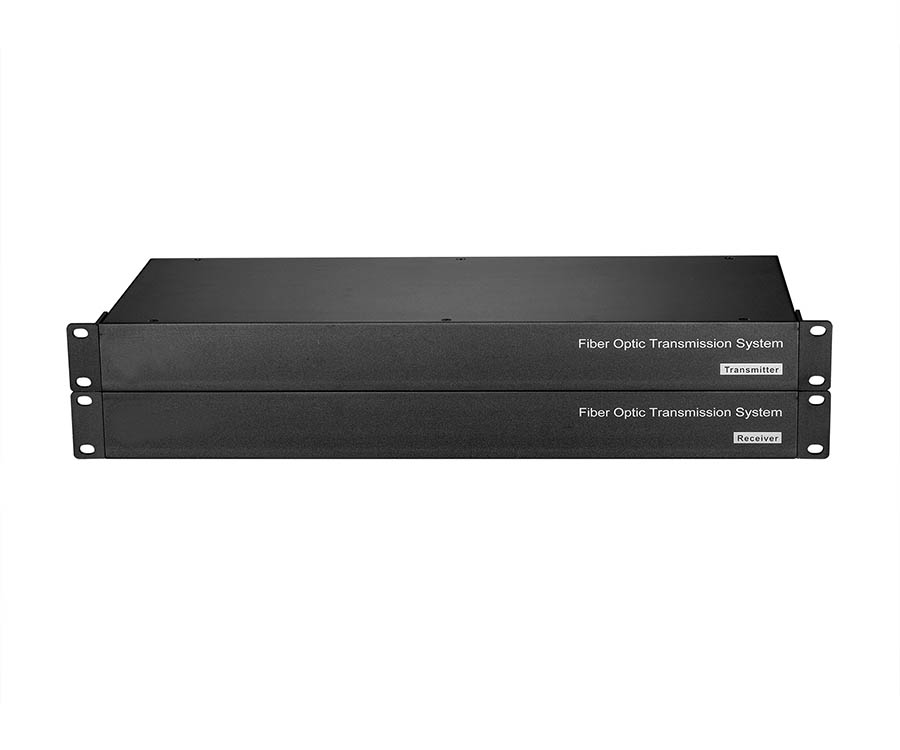

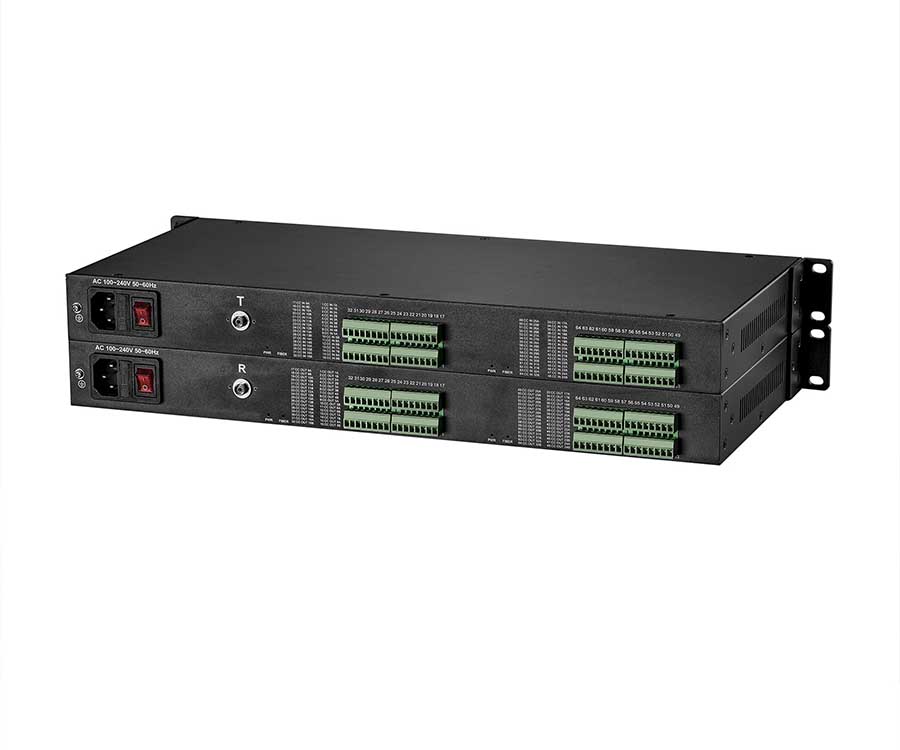

32 Channel Contact Closure Fiber Optical Converter

Model:CC3200

Support 32 Channel Positive Contact Closure Fiber Optical Converter;
Support Single fiber, dual fiber (optional) ;
Multi-mode transmission distance 500M, single mode distance 20KM;
The device is open mode by default;
The device does not support wet contact (charged) function by default;
Support for 100M Ethernet (optional);
Support LED status indicator;
Devices are used in pair (Transceiver and Receiver);
Plug and play,no driver;
Wide range of operational temperature (-20°C ~75°C);

REQUEST A QUOTE

Introduction

UPCOM contact closure fiber optic converter is specially designed for long-distance optical fiber transmission, using self-developed non-compressed digital photoelectric conversion technology, using optical fiber point-to-point transmission contact closure, Ethernet, to achieve no delay,High reliability contact closure control, network transmission.


CC3200 contact closure fiber optic converter can transmit 32 positive contact closure through a single fiber or dual fiber, the multi-mode transmission distance can reach 500M, and the single mode transmission distance can reach 20km. The device works in pairs (transceiver and receiver), supports plug-and-play, no setting required, works in a wide operating temperature range (-20°C ~75°C), and has a 3-year warranty.


Features

 Support 32 Channel Positive Contact Closure Fiber Optical Converter;

 Photoelectric isolation scheme to ensure the reliability, stability and security;

 Support Single fiber, dual fiber (optional) ;

 Multi-mode transmission distance 500M, single mode transmission distance 20KM;

 The device is open mode by default;

 The device does not support wet contact (charged) function by default;

 Support for 100M Ethernet (optional);

 Support LED status indicator;

 Devices are used in pair (Transceiver and Receiver);

 Plug and play,no driver;

 Wide range of operational temperature (-20°C ~75°C);

 Warranty: 3 years;


Specification


Fiber Optical

Module type

Single fiber (standard)

Wavelength

1310nm, 1550nm

Rate

155Mbps

Tx power

-7db

Rx sensitivity

-24db

Fiber connector

FC (standard) SC/ST/LC (optional)

Contact closure

Level type

Contact closure (2 wire system)/ 1 channel

Input channels

32 channel

Output channels

32 channel

Input power range

AC100V-240V

Input electrical parameters

Dry node, not charged (short or disconnected)

Output electrical parameters

Dry node, not charged (short or disconnected)

Open / closed

Always open (standard)

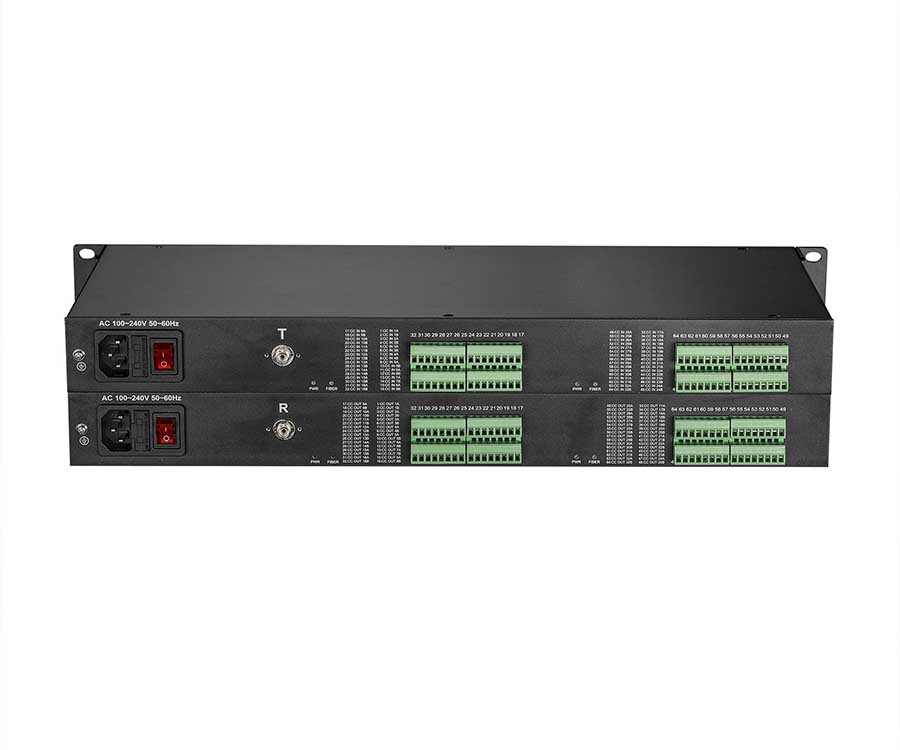

Physical interface

Industry terminal

Relay

Output relay maximum switching voltage

240VAC/30VDC

Output relay mechanical durability

100,000,000 times

Maximum output power of relay

100,000,000 times

Ethernet

Bandwidth

Self-adapting 10/100M rate

Protocol

IEEE802.3 10Base-T Ethernet,

IEEE802.3u 100Base-TX/FX Fast Ethernet,

IEEE802.3x Flow control, IEEE802.1d Spanning Tree

IEEE802.1q VLAN,IEEE802.1p QoS

Physical connector

RJ45

Other

The shell metal

Aluminium alloy

Product size

445*220*89mm

Weight

3.5KG

Working temperature

-20°C ~75°C

Storage temperature

-40°C ~85°C

Relative humidity

From 5 to 95% (non-condensing)

Warranty

3 Years
