Introduction

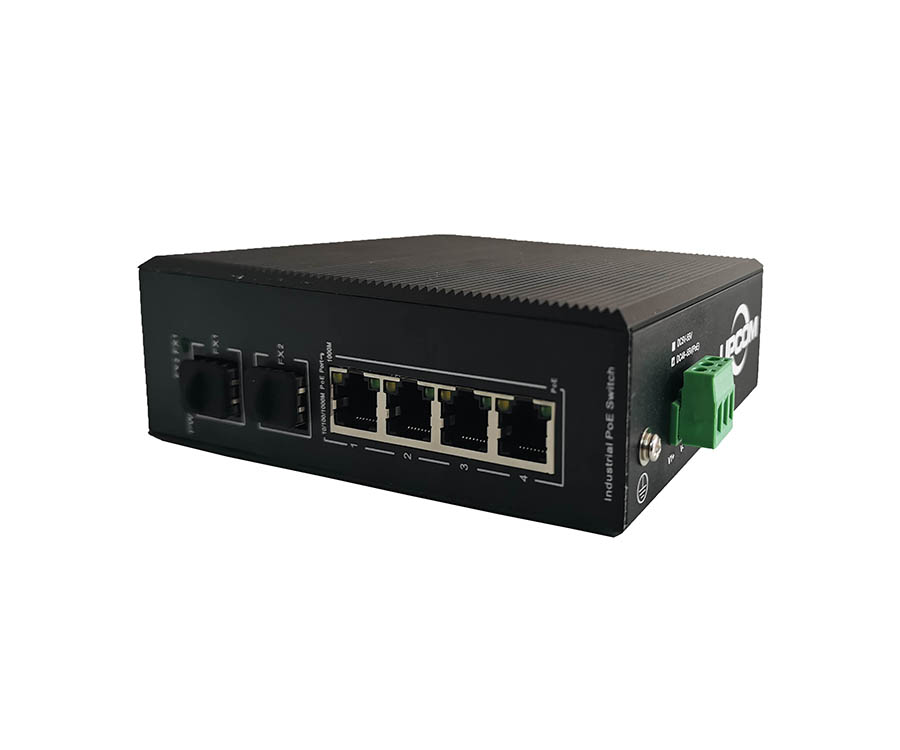

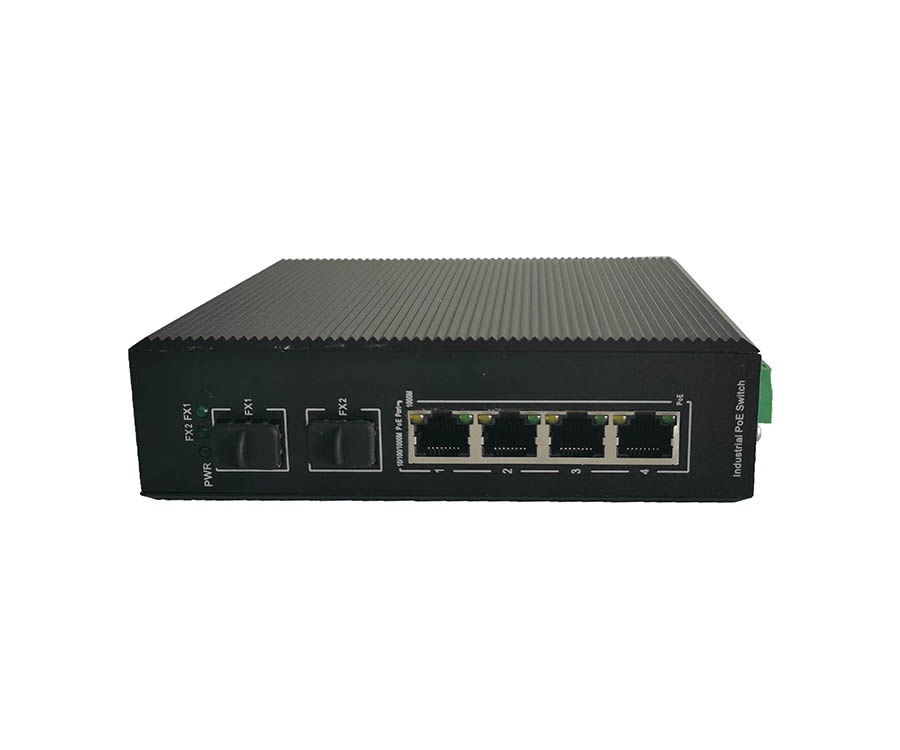

PIES206G-2GS-4P Industrial PoE Switch, support 4-port gigabit POE +2-port gigabit SFP, DIN-Rail & Wall mounts installation, support power input (DC48-55V), working temperature -40-75°C, the reliable industrial design can ensure the stability of the system without interruption.
Industrial PoE switch PIES206G-2GS-4P is a network device that transmits electrical power through the same cable that carries data. When connecting network devices such as IP cameras, VoIP phones, and wireless access points, the switch will detect whether they are compatible with PoE and automatically enables PoE power transmission to these endpoints.
Industrial PoE switches support IEEE802.3af(15.4W),802.3at PoE+(30W), save installation and maintenance costs by reducing the need for external power supply, additional wires, power outlet. Each component of the Industrial PoE switch is designed and rigorously tested to handle extremely harsh environments subject to a wide range of operating temperature, vibration and shock, and protection from ESD, EMI and electrical surge.
UPCOM PIES206G-2GS-4P Industrial PoE switches provide Small Form Pluggable (SFP) transceivers with LC connector. Fiber ports support multimode(850nm) or single-mode(1310/1550nm) and dual fiber or single-fiber with a maximum distance can reach 120km.
PIES206G-2GS-4P industrial POE switches can be widely used in Intelligent Transportation System, Electric Power, Industrial Automation, power SCADA, Rail Transportation, Security Surveillance, Military and other industries, is a low power consumption Industrial Network Switch.
Support 4-port gigabit POE +2-port gigabit SFP;
Support IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3af/at, store and forward;
Compatible with both IEEE802.3at(30W) and IEEE802.3af(15.4W);
Support IP40 protection, high strength iron shell;
Support redundant power supply, support anti reverse;
Support VLAN，Extend，Standard swapping, VLAN+ Extend four modes;
Support port Surge Protection: Common mode 6KV;
Support Differential mode 2KV; ESD 15KV, Contact 8KV;
Comply with EMC EN55032 standard;
Industrial grade 4 design, -40-75°C working temperature;
Support dual power supply DC48-55V;
Support DIN-Rail or wall Installation;
Warranty:5years;
