5-port Gigabit Industrial PoE Swtiches

4-port 10/100/1000M Base-T (x) PoE + 1-port 1000Base-FX

Model：PIES205G-GF-4P

Support 4-port 10/100/1000M Base-T(X) PoE + 1-port 1000Base-FX;
Support IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3af/at, store and forward;
Compatible with both IEEE802.3at(30W) and IEEE802.3af(15.4W);
Support IP40 protection, high strength iron shell;
Support redundant power supply, support anti reverse;
Industrial grade 4 design, -40-75°C working temperature;
Support dual power supply DC48-55V;
Support DIN-Rail or wall Installation;
Warranty:5years

REQUEST A QUOTE

Overview
Feature
Specification
Ordering Information
Download
Video

Introduction

PIES205G-GF-4P Industrial PoE Switch support 4-port 10/100/1000M Base-T(X) + 1-port 1000Base-FX, for connecting with devices like computer, switch, hub, server, etc, as well as powering network camera, industrial VoIP phone, wireless AP and other PoE supported devices. Specially designed for harsh outdoor applications. Its 3KV network port surge protection and 6KV port Lightning protection can adapt to harsh outdoor environment and ensure the reliability of the uninterrupted PoE system. Power input also chooses industry-standard types of power.

Specification
Product Name	5- Port 10/100/1000M Industrial PoE Media Converter
Product Model	PIES205G-GF-4P
Interface	4-port 10/100/1000M RJ45 PoE + 1-port 1000Base-FX
Network Protocols	IEEE802.3 10BASE-T; IEEE802.3i 10Base-T;IEEE802.3u;100Base-TX/FX;
	IEEE802.3ab 1000Base-T; IEEE802.3z 1000Base-X; IEEE802.3x;
	IEEE802.3af , IEEE802.3at;
PoE Specification	PoE Standard: IEEE802.3af/ IEEE802.3at
	PoE ports: 4 port support PoE
	Power Output: Max. 15.4 watts (IEEE 802.3af) Max. 30 watts (IEEE 802.3at)
	PoE port Auto detect AF/AT devices
	Output Voltage: DC48-57V
	Power Pin Assignment:1/2+;3/6-
	Power Type: End-span( Mid-span optional)
Network Media	10BASE-T: Cat3,4,5 UTP(≤100 meter)
	100BASE-TX: Cat5 or later UTP(≤100 meter)
	1000BASE-TX: Cat6 or later UTP(≤100 meter)
Fiber Media	Multi-mode: 2KM
Fiber Media	Single-mode: 20/40/60/80KM
Performance Specification	Bandwidth: 10Gbps
	Packet Buffer Memory:1M
	Packet Forwarding Rate:148800pps/port
	MAC Address Table: 8K
Forwarding Mode	Store-and-Forward
Protection	6KV Lightening protection, IP40 protection
LED Indicators	Power: PWR; Link; PoE; Link/Act

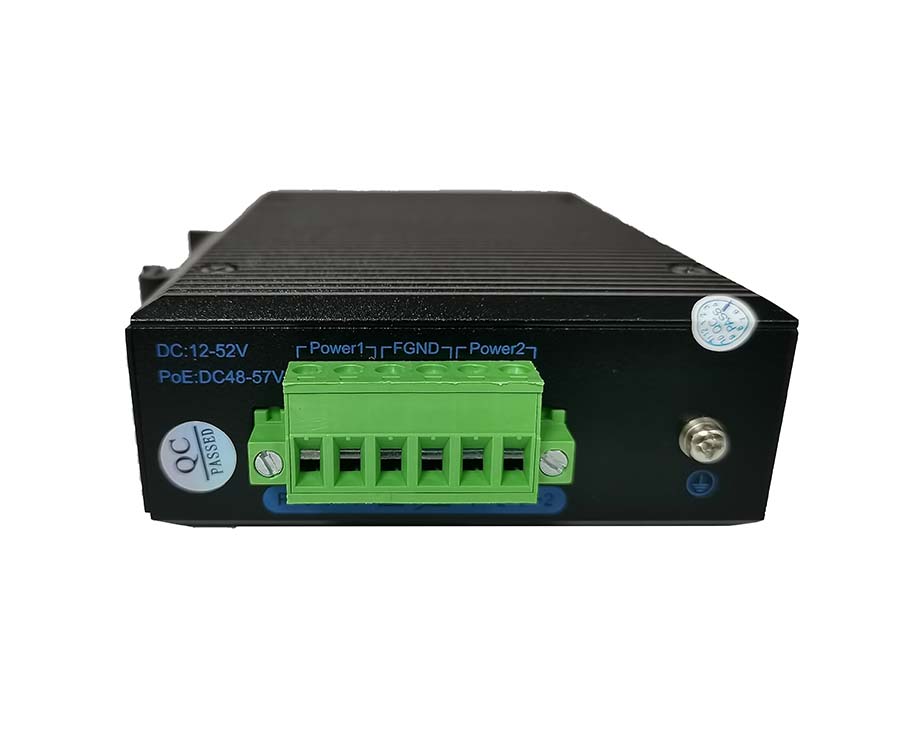

Power Supply	Input Voltage: DC52V (48～57V) /Terminal block
Other Specifications
Working Environment	Working temperature: -40°C~75°C
	Storage temperature: -45°C~85°C
	Relative Humidity: 5%~95 %( no condensation)
Industry Standard	FCC CFR47 Part 15,EN55022/CISPR22, Class A EMS:
	IEC61000-4-2 (ESD): ±8kV (contact), ±15kV (air)
	IEC61000-4-3 (RS): 10V/m (80MHz-2GHz)
	IEC61000-4-4 (EFT): Power Port: ±4kV; Data Port: ±2kV
	IEC61000-4-5 (Surge): Power Port: ±2kV/DM, ±4kV/CM; Data Port: ±2kV
	IEC61000-4-6 (CS): 3V (10kHz-150kHz); 10V (150kHz-80MHz)
	IEC61000-4-16 (Common mode conduction): 30V (cont.), 300V (1s)
Shell	IP40 protect grade, metal shell
Installation	DIN-Rail
Certification	CE mark, commercial; FCC Part 15 Class B; VCCI Class B
Certification	EN 55022 (CISPR 22), Class B
MTBF	300,000 hours
Weight & Size	Product Weight: 0.36 KG
	Packing weight: 0.46 KG
	Product size (L×W×H): 118mm86mm39mm
	Packing size(L×W×H): 220mm220mm70mm
Warranty	5-years

Select	Model Name	Description
	PIMC201	1-port 10/100/1000M Base-T(X) PoE +1-port 1000M FX, DC48V
	PIMC202	2-port 10/100/1000M Base-T(X) PoE +1-port 1000M FX, DC48V
	PIMC201-SFP	1-port 10/100/1000M Base-T(X) PoE +1-port Gigabit SFP, DC48V
	PIES205G-GF-4P	4-port 10/100/1000M Base-T(X) PoE +1-port 1000M FX, DC48V

Date	Version	Description	Download
2017-06-23	1.0	4-port 10/100/1000M Base-T (x) PoE + 1-port 1000Base-FX

Date	Version	Description	Download
2017-06-23	1.0	4-port 10/100/1000M Base-T (x) PoE + 1-port 1000Base-FX
